$104.95
$125.94
FINAL SALE. No returns or exchanges.

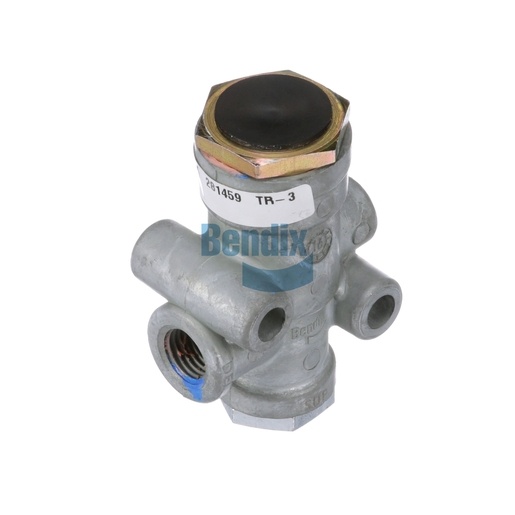

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Bendix offers a high-performance Inversion Valve, engineered for trailer air brake systems, ensuring dependable operation for heavy-duty applications. This valve is crucial in regulating the air flow that activates the brakes, providing a reliable solution for maintaining safety and performance in your vehicle. With precise engineering, it allows for quick response times and enhances the overall efficiency of your braking system. Its lightweight design, at only 0.3 kg, ensures ease of installation without compromising durability. The Inversion Valve from Bendix is designed to meet rigorous industry standards, making it a trusted choice for commercial operators. Elevate your vehicle's performance with this essential component and rely on Source One Parts Center for genuine Bendix OEM parts that you can trust.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port 1
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Descending Pressure (Common CON / SUP)
25 PSI
Width
35.1 mm (1.38 in)
Exhaust Opening Ascending Pressure (Common CON / SUP)
40 PSI
Length
49.0 mm (1.93 in)
Height
75.4 mm (2.97 in)
Inlet Opening Pressure (Constant SUP / Variable CON)
8 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Ø .280 IN (2x)
Weight
0.65 lb
