281563

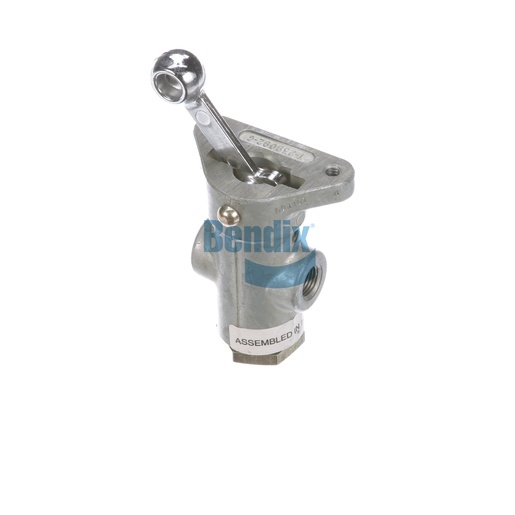

Control Valve
Bendix

UNAVAILABLE

Bendix

Non Returnable

FINAL SALE. No returns or exchanges.

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.


DESCRIPTION
The Control Valve is an essential component for managing air flow and pressure in your vehicle's braking system. This 2-position valve ensures precise control over the braking process, enabling smooth and reliable operation. With a maximum operating temperature of 200°F and a minimum of -40°F, it is built to perform under extreme conditions, making it suitable for heavy-duty applications. The valve features a compact design with a mounting style that allows for easy installation, ensuring that your vehicle can get back on the road with minimal downtime. It also boasts a durable construction, designed to withstand the rigors of everyday use. This valve is integral to maintaining optimal brake performance, allowing for quick response times and enhanced safety. For the best selection of Bendix OEM parts, choose Source One Parts Center, where quality and reliability come first.

SPECIFICATIONS

Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Width
33.5 mm (1.32 in)
Length
56.1 mm (2.21 in)
Total Travel
75°
Harmonized System (HS) Code
848120
Height
94.5 mm (3.72 in)
Actuator Finish
Chrome-Plated
Actuator Style
Flipper
Country of Origin
Mexico
Mechanism Type
Positioning
Exhaust Port
Vent
Actuator Material
Zinc
Weight
0.55 lb
