DESCRIPTION

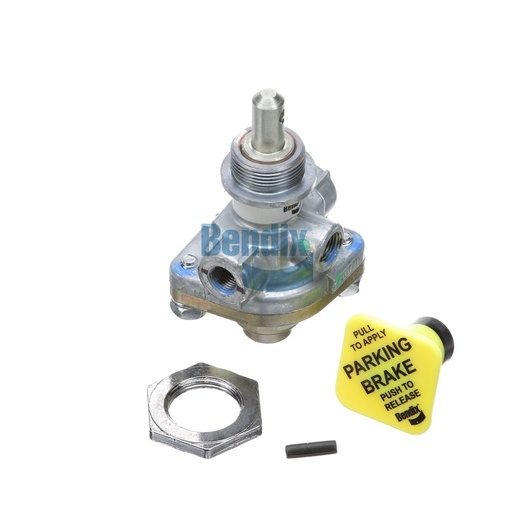

The Bendix Control Valve is an essential component designed to ensure the efficient operation of trailer brake systems. It features a robust construction with a diamond-shaped pull-to-apply button, providing an intuitive interface for drivers to engage or release the parking brake. With a maximum operating temperature of 200°F, this valve is built to withstand the demanding conditions of commercial trucking, ensuring reliability in every situation. The valve's compact size and lightweight design make it easy to install and integrate into existing brake systems, while its automatic release pressure of 40 PSI guarantees optimal performance. Whether you're navigating city streets or highway hauls, the Bendix Control Valve offers the precision and control needed for safe braking. For top-quality Bendix OEM parts, Source One Parts Center stands out as the premier destination, ensuring you receive genuine components tailored for your commercial vehicle's needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.59 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
102.6 mm (4.04 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Shape
Diamond
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Apply | Parking Brake | Push to Release
Button Color
Yellow (Black Band)
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.67 lb
