287261

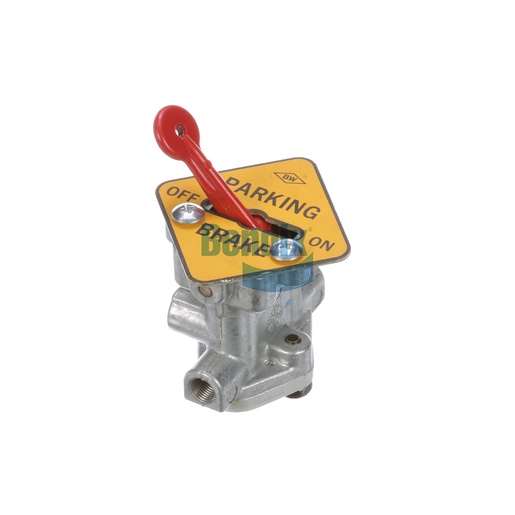

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve from Bendix is an essential component for ensuring the efficient operation of your air brake system. This valve is engineered to provide precise control over the air flow, critical for maintaining optimal braking performance. With an automatic release pressure of 40 PSI, it helps prevent brake lock-up, enhancing safety during operation. The valve's lightweight design, weighing just 0.4 kg, allows for easy installation, while its durable construction ensures reliability in a variety of temperatures, from -40°F to 200°F. This Control Valve is perfect for both tractors and trailers, making it a versatile choice for any fleet. Source One Parts Center is your best source for genuine Bendix OEM parts, ensuring you receive high-quality products that enhance vehicle performance.
SPECIFICATIONS
Mounting
#10-24 UNC-3B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port 1
1/8-27 NPT
Supply Port 2
1/8-27 NPT
Height
114.6 mm (4.51 in)
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Length
73.2 mm (2.88 in)
Width
73.2 mm (2.88 in)
Total Travel
75°
Harmonized System (HS) Code
848120
Supply Port 3
Closed Port
Supply Port 4
Closed Port
Lever Position 3
DEL 1 / DEL 2
Lever Position 1
EXH 1 / EXH 2
Actuator Style
Flipper
Country of Origin
Mexico
Lever Position 2
Neutral Position
Actuator Material
Nylon
Dial / Plate Text
Parking Brake | On-Off
Mechanism Type
Positioning
Actuator Finish
Red
Exhaust Port
Vent
Weight
0.86 lb
