$60.95
$73.14
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

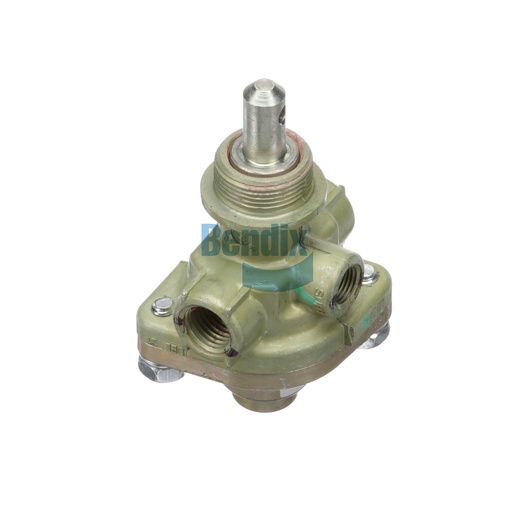

The Bendix Control Valve is essential for managing air brake systems, ensuring precise control and responsiveness in commercial vehicles. This valve features a compact design that allows for easy installation while delivering reliable operation. Engineered for durability, it effectively manages air flow to enhance braking performance, contributing to overall safety on the road. With a net weight of only 0.3 kg (0.57 lb), this valve is lightweight yet robust, making it suitable for various heavy-duty applications. The control valve operates efficiently under different environmental conditions, ensuring optimal performance in all scenarios. For those searching for genuine Bendix OEM parts for commercial vehicles, Source One Parts Center is your top choice, offering reliable parts that keep your fleet running smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.16 IN
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
30 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
91.7 mm (3.61 in)
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
0.57 lb
