$59.95
$71.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

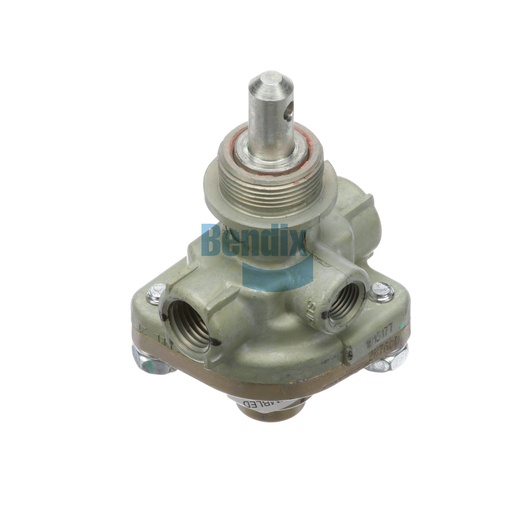

The Control Valve from Bendix is engineered to provide reliable air management within trailer brake systems, ensuring efficient performance and safety. This valve features a robust design that withstands extreme temperatures, from -40 °F to 200 °F, making it suitable for various operational conditions. Its compact dimensions allow for seamless integration into existing systems, while the multiple ports facilitate effective air delivery. The valve operates under a precise automatic release pressure of 40 PSI, enhancing the braking system's responsiveness. When looking for genuine Bendix OEM parts, Source One Parts Center is the best destination for quality and reliability, ensuring your commercial vehicles remain safe and efficient on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.16 IN
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120,848180
Length
91.7 mm (3.61 in)
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
0.57 lb
