$249.95
$299.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

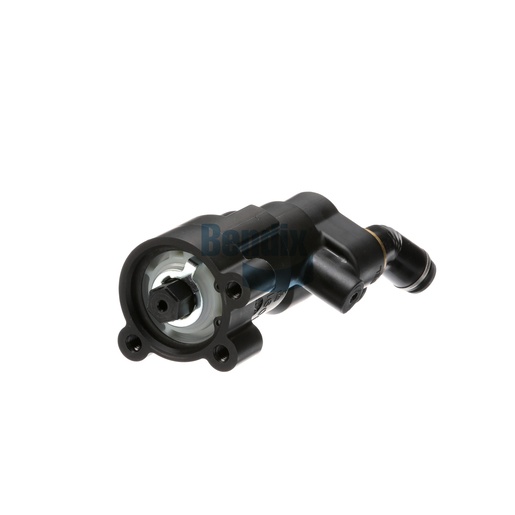

Optimize your trailer braking performance with the Bendix Trailer Control Valve, a critical component designed for use in inversion valve applications. This high-quality valve ensures efficient control of the air supply to the trailer's braking system, enhancing safety and responsiveness during operation. With a durable construction, it is engineered to withstand the challenges of heavy-duty environments, ensuring long-lasting performance and reliability. The valve features multiple ports for easy integration and installation, allowing for quick replacements that minimize downtime for your fleet. Its design is optimized for consistent performance, providing drivers with the confidence they need when maneuvering heavy trailers. For genuine Bendix parts like this trailer control valve, Source One Parts Center is the best destination, offering quality products tailored to meet the demands of commercial vehicle applications.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Mounting
1/4-20 UNC-2B (3x)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port
3/8 PTC (45° Elbow / Composite)
Exhaust Port
3/8 PTC (45° Elbow / Composite)
Supply Port
3/8 PTC (Straight)
Graduating Pressure Range
5 - 80 PSI
Total Cam Follower Travel
71° CW
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Body Material
Plastic
Final Delivery Pressure
Reservoir
Product Type
Self-Return (without Detent)
Weight
0.74 lb
