3539458

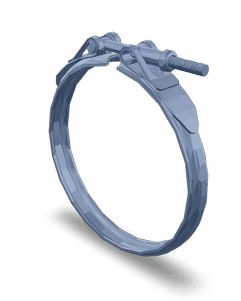

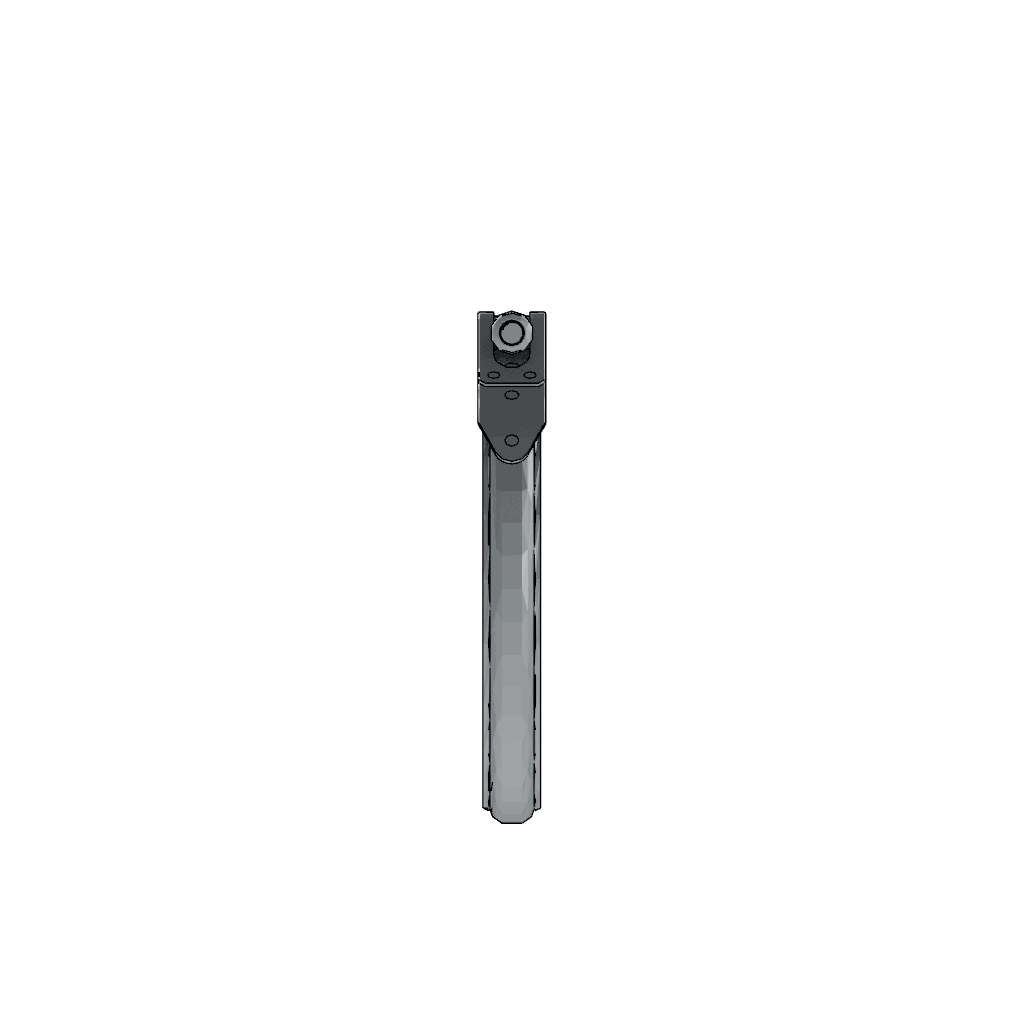

v Band Clamp
Cummins®

Introduction

The V Band Clamp 3539458, a component manufactured by Cummins, is pivotal in the commercial truck industry. Designed for commercial trucks, this clamp ensures the integrity of various systems by sealing and connecting exhaust and intake systems, among other components ¹.

Basic Concepts of V Band Clamps

V Band Clamps, including the 3539458, are fastening devices widely used in automotive and industrial applications. Their V-shaped band, which wraps around components and is tightened using a single bolt, allows for an even distribution of clamping force. This design simplifies the process of disassembly and reassembly, making it particularly advantageous in applications requiring frequent maintenance ².

Role of V Band Clamp 3539458 in Truck Operation

In commercial trucks, the V Band Clamp 3539458 is crucial for the efficient operation of the vehicle. It ensures secure and leak-free connections in the exhaust system, intake system, and other critical components, contributing to the engine’s efficiency and the truck’s overall performance ³.

Key Features

The V Band Clamp 3539458 stands out due to its construction from high-quality materials, ensuring durability and resistance to harsh conditions. Its design facilitates easy installation and removal, and its V-shaped band and single-bolt tightening mechanism offer advantages in efficiency and ease of use.

Benefits

The use of the V Band Clamp 3539458 offers several benefits, including improved sealing efficiency, reduced risk of leaks, ease of installation and removal, and long-term reliability. These advantages make it a valuable component in the maintenance and operation of commercial trucks.

Troubleshooting and Maintenance

Common issues with V Band Clamps, such as leaks due to improper installation or wear and tear, can be addressed by ensuring proper alignment and tightening to the manufacturer’s specifications. Regular maintenance, including inspections for wear and secure connections, is essential for the longevity and optimal performance of the clamp.

About Cummins

Cummins Inc., a global power leader, designs, manufactures, and distributes engines, filtration, and power generation products. With a century-long history, Cummins is renowned in the commercial truck industry for producing reliable and high-performance components. The company’s product range includes engines, powertrain components, and aftermarket parts, all designed to meet the demanding requirements of commercial vehicles. Cummins’ commitment to innovation and quality is evident in its products, including the V Band Clamp 3539458.

Compatibility with Cummins Engines

This part is designed to fit a range of Cummins engines, ensuring optimal performance and preventing leaks. Below is an overview of its compatibility with specific Cummins engines:

ISX Series

• ISX CM570
• ISX CM870
• ISX15 CM2250 SN

K Series

• K19
• K38

KTA Series

• KTA19GC
• KTA19GC CM558
• KTA38GC CM558

N14 Series

• N14 CELECT PLUS
• N14 MECHANICAL

NH/NT Series

• NH/NT 855

QSK Series

• QSK19G
• QSK38 CM850 MCRS
• QSK60 CM500
• QSK60G
• QSK78 CM500

QSM and QSN Series

• QSM11 CM570
• QSN14 CM876 N103

QST Series

• QST30 CM552

X15 Series

• X15 CM2350 X123B

Role in Engine Systems

This part is essential in various engine systems, ensuring secure and efficient connections between different parts. Its applications include:

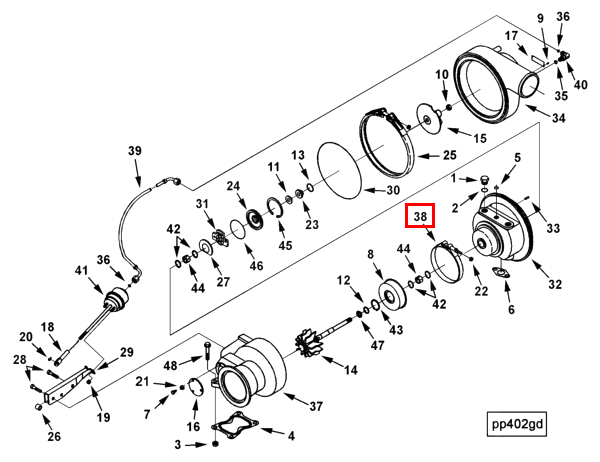

• Aftercooler and Turbocharger Systems: Connecting the aftercooler to the turbocharger.
• Camshaft and Cylinder Head Assemblies: Securing components in cam follower housing and camshaft mounting systems.
• Connecting Rod and Piston Systems: Ensuring the connection between the rod and piston is maintained.
• Injector Plumbing and Turbine Housing Repair Kits: Connecting injector lines and reassembling the turbine housing.
• Performance Parts and Turbocharger Housing Repair Kits: Connecting various components within these kits.
• Campaign Kits and Dataplate Assemblies: Addressing specific engine issues and connecting sensors and monitoring devices.

Conclusion

The V-Band Clamp (part 3539458) is a versatile component that plays a significant role in various engine systems. Its application across different components ensures that engine operations are smooth, efficient, and reliable. Whether used in aftercooler systems, turbocharger setups, or performance parts, the V-Band Clamp is an indispensable part of modern engine design.
