3050692
Magnetic Switch
Cummins®

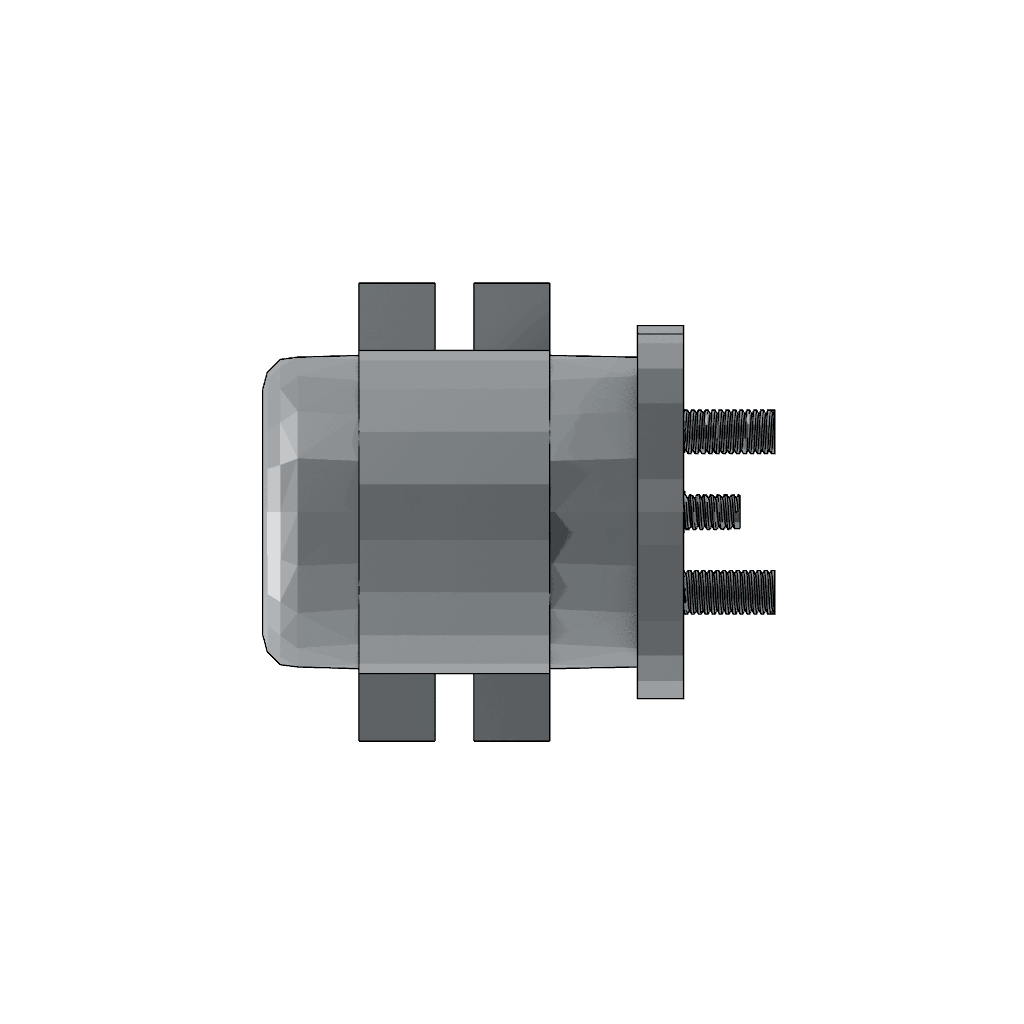

The Cummins 3050692 Magnetic Switch is a critical component for commercial trucks, integral to the vehicle’s electrical system. Understanding its function and role is essential for maintaining and troubleshooting truck electrical systems.

Basic Concepts of Magnetic Switches

A magnetic switch, or magnetic reed switch, operates using a magnetic field. It consists of ferromagnetic contacts in a glass tube, positioned between two poles of a permanent magnet. An external magnetic field causes the contacts to close, allowing current flow. This mechanism is utilized in automotive systems for security, fuel level indicators, and engine management ¹.

Functionality of the Cummins 3050692 Magnetic Switch

This Cummins part controls electricity flow to specific components within a truck’s electrical system. It ensures systems operate correctly under various conditions, often in conjunction with sensors and control modules for engine functions or safety mechanisms. Its operation is based on magnetism, where the presence or absence of a magnetic field determines the switch’s state ².

Key Features

The 3050692 Magnetic Switch is noted for its robust design and high-quality materials, built to endure the harsh environments of commercial truck operations. Features include a durable housing for protection against moisture and debris, and precise engineering for reliable operation across a wide temperature range. It may also feature corrosion-resistant materials and enhanced magnetic field sensitivity ³.

Benefits

The 3050692 Magnetic Switch offers improved reliability, efficiency, and safety in truck operations. Its design ensures consistent performance, reducing electrical failures. The switch contributes to fuel economy and operational cost-effectiveness, and enhances vehicle safety by ensuring correct electrical system operation.

Troubleshooting and Maintenance

Common issues with the 3050692 Magnetic Switch include activation or deactivation failures, potentially due to magnetic interference, physical damage, or electrical issues. Diagnostic steps involve checking magnetic field strength, inspecting for physical damage, and testing electrical connections. Maintenance practices include regular inspection for wear or damage, cleaning to prevent debris accumulation, and ensuring secure and corrosion-free electrical connections.

About Cummins

Cummins Inc. is a global leader in designing, manufacturing, and distributing engines, filtration, and power generation products. With over a century of history, Cummins is known for innovation, quality, and reliability in the commercial truck industry. The 3050692 Magnetic Switch exemplifies Cummins’ commitment to excellence, designed to meet the demanding requirements of commercial truck operations.

Compatibility with Cummins Engines

The 3050692 Magnetic Switch is compatible with a variety of Cummins engines, ensuring the proper functioning of the engine’s ignition system. Compatible engines include:

• 4B3.9
• 6B5.9
• 6C8.3
• GTA38 G CMEICS G116C
• ISM CM570
• ISM CM570/870
• K19
• K38
• K50
• KTA19GC
• KTA19GC CM558
• L10 CELECT
• L10 GAS
• L10 MECHANICAL
• M11 CELECT
• M11 CELECT PLUS
• M11 MECHANICAL
• N14 MECHANICAL
• NH/NT 855
• QSC8.3 CM554
• QSK19 CM2350 K105
• QSK19 CM2350 K114
• QSK19 CM2350 K144G
• QSK19 CM500
• QSK19 CM850 MCRS

This compatibility ensures the switch can be used across a wide range of Cummins engines, providing a reliable solution for ignition system needs.

Role in Engine Systems

The 3050692 Magnetic Switch is integral to various engine systems, ensuring seamless functionality and coordination among components. It plays a crucial role in electric and air starting systems, injection starting systems, electric system kits, and electrical starting accessories. The switch manages electricity flow to various components, preventing overloads and ensuring consistent performance. In engine control and instrumentation systems, it monitors and regulates engine operations, providing feedback for optimal performance. It is also used in hardware kits and engine installation kits, ensuring secure electrical connections. For onboard spares and miscellaneous kits, the switch serves as a reliable component for quick deployment in case of failures, minimizing downtime.

Conclusion

The Cummins 3050692 Magnetic Switch is a versatile and essential component that enhances the reliability and efficiency of various engine systems, ensuring they operate in harmony. Its robust design, compatibility with a wide range of Cummins engines, and critical role in engine systems make it a valuable asset in commercial truck operations.
