3612550C94
PANEL, DOOR TRIM, LEFT HAND FR PREM POWER PKT LAMP POWER MIRROR
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$619.95
$743.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
PANEL, DOOR TRIM, LEFT HAND FR PREM POWER PKT LAMP POWER MIRROR
Weight
13.2 lbs

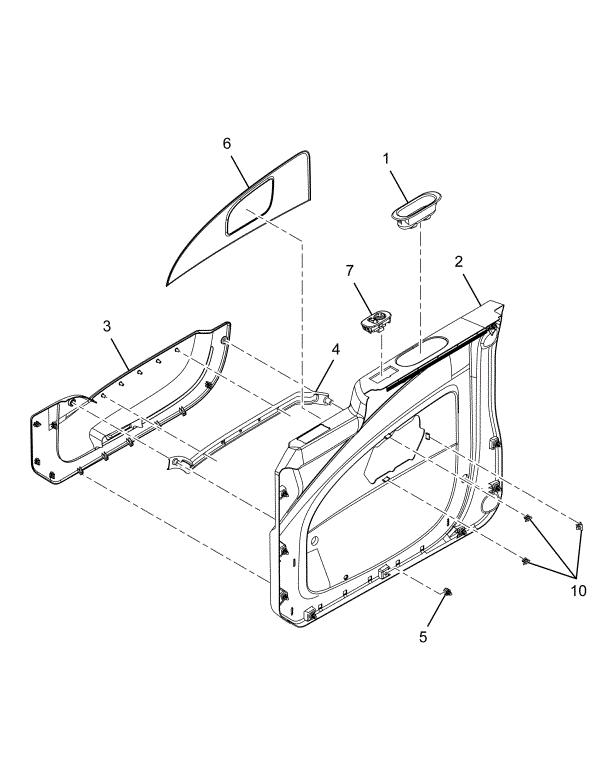

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| HANDLE, DOOR INSIDE, PULL CUP | 1 | 3611337C2 |
| FASTENER, SPRING CLIP | 3 | 3616801C1 |
| PANEL DOOR SUBSTRATE FR LEFT HAND POWER MIRROR UPGRADE | 1 | 3612275C2 |
| POCKET, DOOR MAP W/LIGHT LEFT, FRONT | 1 | 3611988C1 |
| REINFORCEMENT, DOOR POCKET LEFT HAND | 1 | 3612035C1 |
| FASTENER, DOOR TRIM RETAINER | 9 | 3805943C1 |
| PANEL, INSERT DOOR PREMIUM LEFT, FRONT | 1 | 3612040C1 |
| SWITCH, POWER MIRROR | 1 | 4084847C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
