3757428C93
PANEL, LOWER FASCIA R ASSEMBLY- SHORT, W/TRACK
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$609.95
$731.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL, LOWER FASCIA R ASSEMBLY- SHORT, W/TRACK

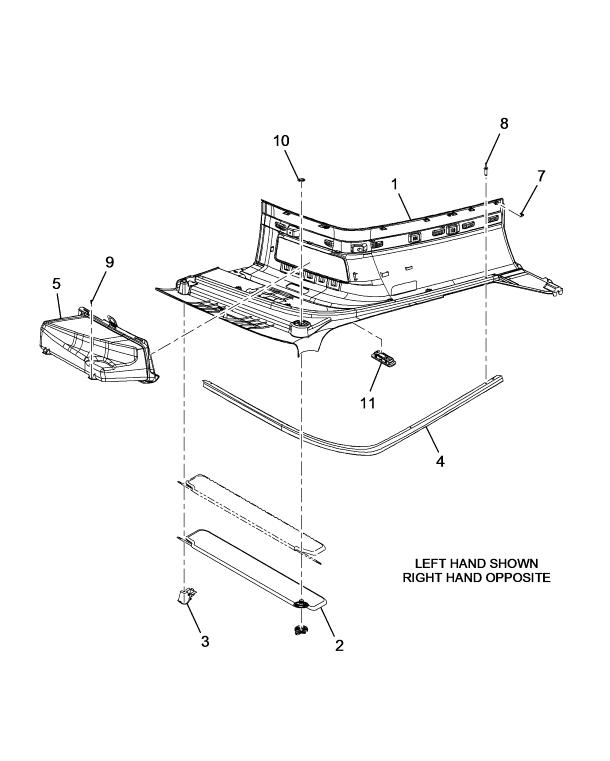

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL SIDE FASCIA RIGHT HAND, SHORT | 1 | 3715172C2 |
| FASTENER, SPEED NUT PUSH ON | 1 | 3620595C1 |
| LIGHT, OVER HEAD COMPARTMENT MAP LIGHT | 1 | 6103961C92 |
| VISOR, SUN, RIGHT HAND | 1 | 3715188C3 |
| VISOR, SUN, CLIP-RIGHT HAND | 1 | 3715186C2 |
| TRACK, CURTAIN WINDSHIELD RIGHT HAND SHORT | 1 | 3859573C1 |
| PANEL OHC BIN RIGHT HAND | 1 | 3857722C1 |
| FASTENER, SPRING CLIP | 10 | 3616801C1 |
| RIVET, BLIND BLACK | 4 | 3615442C1 |
| HARNESS, JUMPER, MAP LIGHT | 1 | 6110337C91 |
| SCREW TORX PLASTIC 4.5 X 1.41 X 14MM | 2 | 3810516C2 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
