3532252C91
FILTER, FUEL W/13/16" STUD W/12 VOLT PREHEATER
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$629.95
$755.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
FILTER, FUEL W/13/16" STUD W/12 VOLT PREHEATER
Weight
9.999 lbs

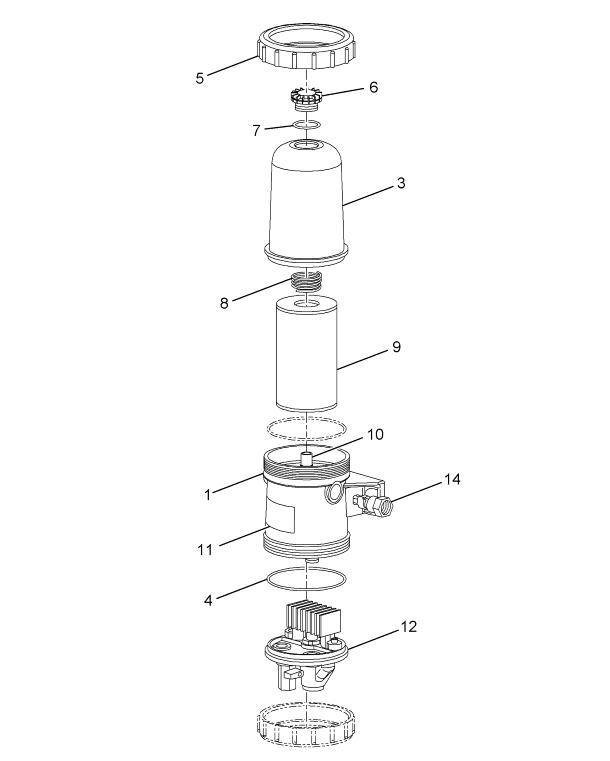

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| STUD, OIL FILTER COVER | 1 | 1694791C1 |
| HEATER, FUEL 12 VOLT | 1 | 2505038C1 |
| VALVE, BALL CHECK | 1 | 1669599C1 |
| COVER, FUEL FILTER CLEAR | 1 | 2603439C2 |
| COVER, FUEL FILTER CLEAR | 1 | 1694744C1 |
| O-RING | 1 | 1694752C1 |
| COLLAR, FUEL FILTER | 1 | 1694754C1 |
| CAP, FUEL FILTER VENT | 1 | 2505210C1 |
| RING, "O" VENT SEAL | 1 | 1697660C1 |
| SPRING, FUEL FILTER ELEMENT | 1 | 1694747C1 |
| HARNESS, ELECTRICAL FUEL FILTER HEATER | 1 | 2505039C91 |
| ELEMENT, FUEL FILTER | 1 | 2503565C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
