MR2014X247
14X NEW EXCHANGE CARRIER
Navistar International®
AVAILABLE
6 are currently available
Ships within 7-9 business days
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
14X NEW EXCHANGE CARRIER
Weight
291 lbs

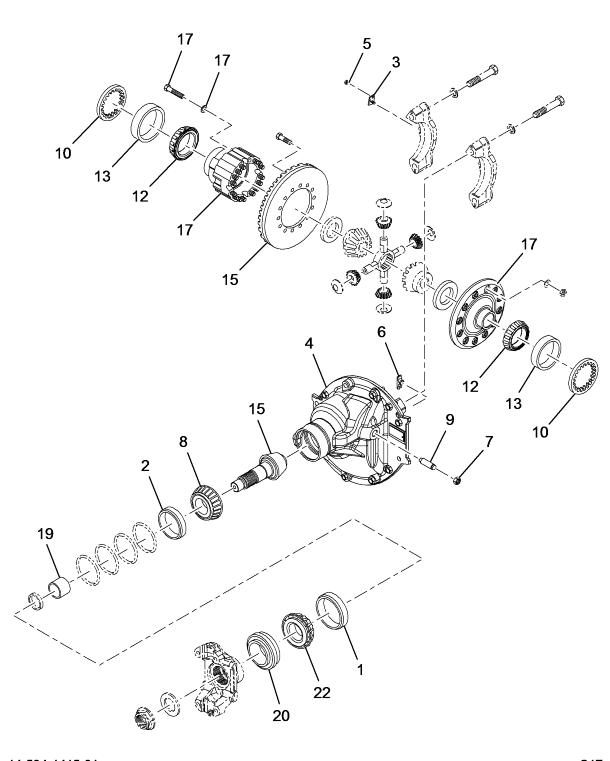

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BEARING, CUP PINION | 1 | FP72487 |
| RING-BRG ADJ | 2 | 2214G1255 |
| BEARING, CONE WHEEL | 2 | FP594A |
| CUP, BEARING | 2 | TM592A |
| GEARSET-SERV. | 1 | B434981R247 |
| DIFF CASE NEST | 1 | A13235A2783 |
| MERITOR WORLD AXLE PARTS-NW-DS | 1 | 1244F2346 |
| CUP, BEARING PINION | 1 | FPH715311 |
| SEAL, PINION OIL | 1 | 2590277C1 |
| BEARING, CONE PINION | 1 | FP72212C |
| LOCK | 2 | 1220P1108 |
| CARRIER & CAP | 1 | A23200G2217 |
| CAP SCREW | 4 | 41X1669 |
| BLOCK, THRUST DRIVE GEAR | 1 | 2508424C1 |
| WASHER THRUST SCREW NUT | 1 | 1696804C1 |
| BEARING, CONE PINION | 1 | FPH715334 |
| PROTECTOR | 1 | ATI3280H8822 |
| SCREW, THRUST DRIVE GEAR | 1 | 2508423C1 |
CROSS REFERENCES
- JB HUNT 64912
