2212805C1
TRANSMISSION COOLER LINE ASSEMBLY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$164.95
$197.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
043-003-012
OEM Description
TRANSMISSION COOLER LINE ASSEMBLY
Package Dimensions
23.25 x 2.25 x 1.2 in
Weight
1.11 lbs

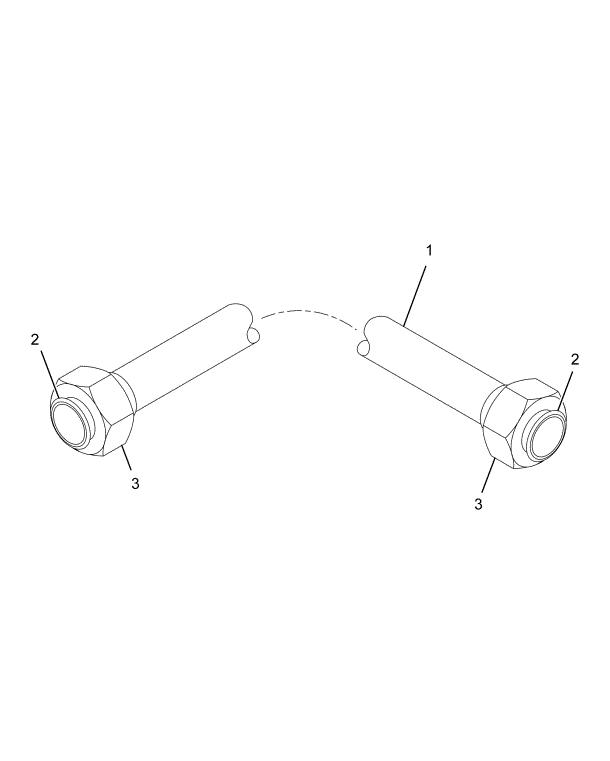

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PIPE TRANSMISSION OIL COOLER | 1 | 2212804C1 |
| SLEEVE,COMP TUBE 37 DEG FLARED TUBE SLEEVE (STD-L-7.151) | 2 | 9403452 |
| 37 DEGREE FLARED TUBE NUT (STANDARD-L-7.149) | 2 | 9403530 |
CROSS REFERENCES
- UPS 5306783
- UPS 5306783
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
