2237795C93
SEAT, LEFT HAND, BUS BODY, ASSEMBLY 39 BTI 3PT 42PVL GY 2LEG N/ICS, LATCH
IC Bus
BACK ORDERED
Please contact us for information on lead time
$599.95
$719.94
This truck part is made by IC Bus. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, LEFT HAND, BUS BODY, ASSEMBLY 39 BTI 3PT 42PVL GY 2LEG N/ICS, LATCH

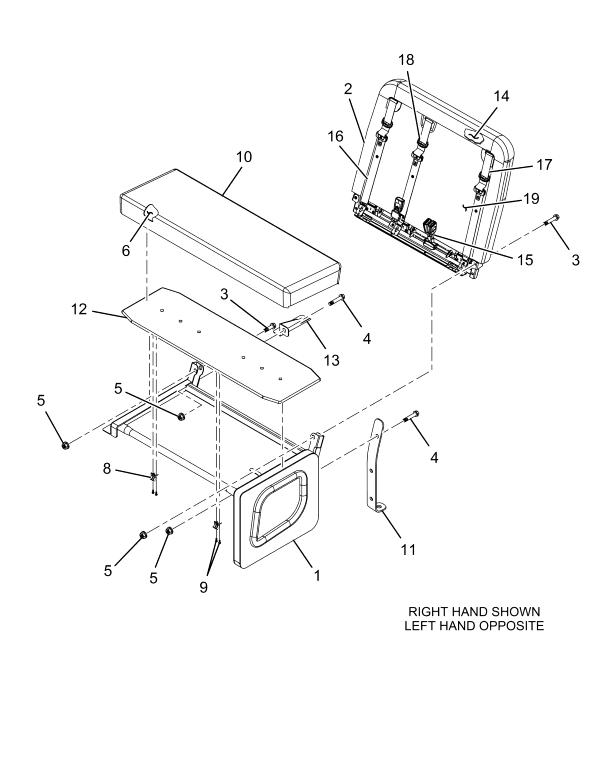

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR SEAT BASE ASSEMBLY WELDMENT L 39 IN | 1 | 3683851C6 |
| SUPPORT DUAL RISER TAIL, R | 1 | 3854734C1 |
| PLYWOOD SEAT BASE CUSHION BO | 1 | 3682035C3 |
| REINFORCEMENT, BUS BODY, WALL RISER, L | 1 | 3769975C1 |
| FOAM, SEAT BACK, OUTER, 39IN | 1 | 2510316C1 |
| BUCKLE ASSEMBLY WEB STRAP SLEEVE 2 INCH X 6.63 INCH BLACK | 1 | 2613124C91 |
| BELT, SLIDER BUCKLE, DUAL, BTI | 1 | 2511006C1 |
| BELT, 3PT, RIGHT HAND, IC BTI BLACK | 1 | 2613160C91 |
| BELT, 3PT, LEFT HAND, IC BTI BLACK | 1 | 2613161C91 |
| BELT, 3PT, CENTER, IC BTI BLACK | 1 | 2613162C91 |
| IMMI 36-39" (GEN 4) X- CHANGE SEAT FRONT PANEL NO LATCH PREVAIL GRAY | 1 | ZBIM720390077FTNL |
| COVER, SEAT PREVAIL GRAY | 1 | ZB5620390077 |
| SEAT BACK COVER | 1 | ZBIM720390077BK |
| FR SEAT ASSEMBLY 39 BTI 3PT BACKREST N/ICS LCH | 1 | 2238205C1 |
| BOLT, HEXAGON HEAD FLANGE | 2 | 3824442C1 |
| BOLT HEXAGON FLANGE 3/8-16X4 W/LOCKING PATCH | 2 | 3827492C2 |
| NUT HEXAGON FLANGE 3/8-16 GRADE 8 | 4 | 3836928C1 |
| FOAM, CUSHION 39 IN 287H | 1 | 2514559C1 |
| CLIP, SEAT CUSHION ROTATION | 2 | 3827500C3 |
| SCREW SCREW, TAPPING PAN HEAD CR | 6 | 24396R1 |
