AS91210
SPRING-AIR, NEWAY
Kenworth®
AVAILABLE
More than 10 are currently available
Ships within 7-8 business days
$224.99
$269.99
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing. We make it easy to buy truck parts online.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

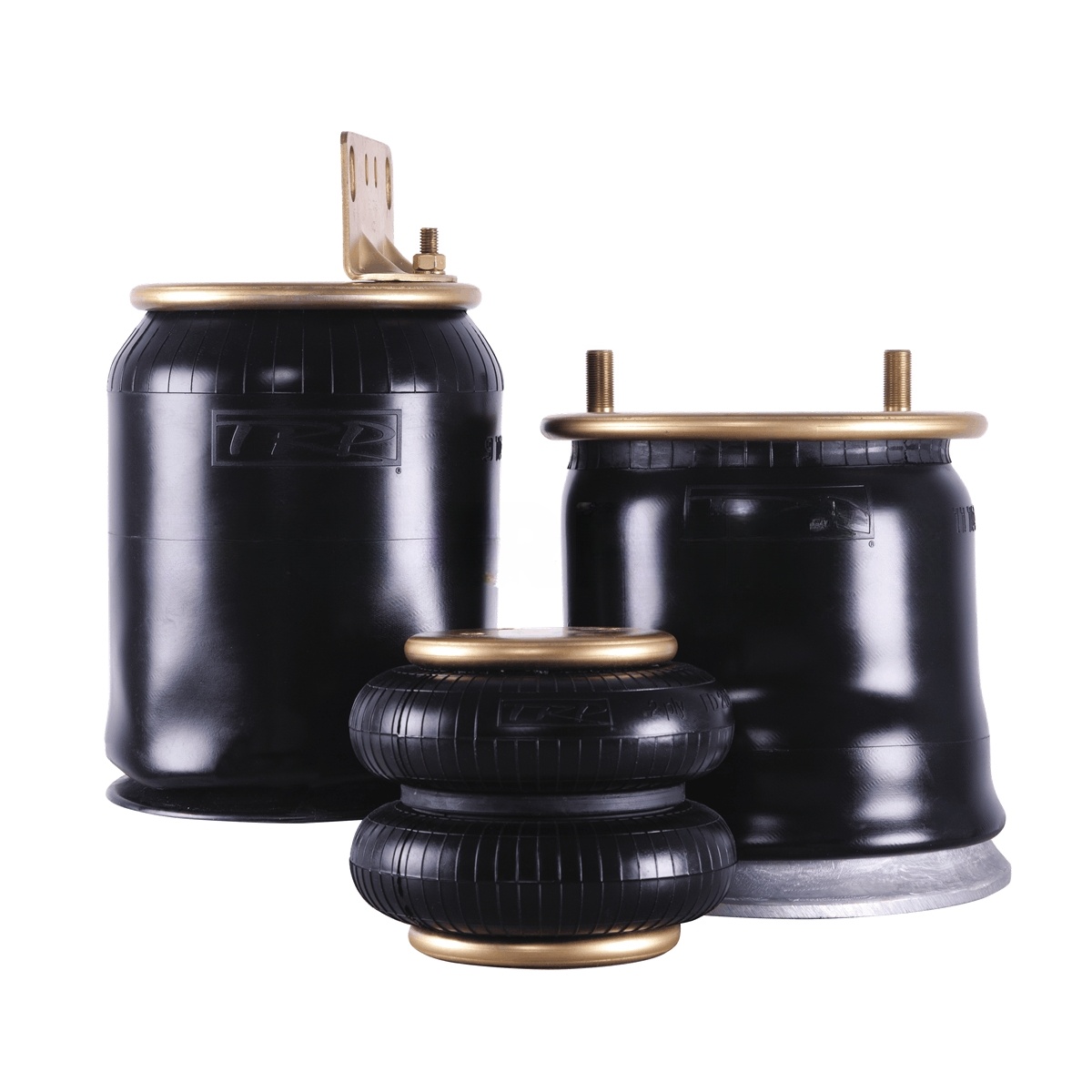

Specifically designed for Neway suspension systems, this spring-air part emphasizes adaptability and durability. Its construction from high-quality materials ensures reliable performance across various conditions. It plays an essential role in the suspension's ability to handle load changes effectively, underlining its contribution to vehicle safety and handling characteristics.
SPECIFICATIONS
VMRS Code
016-008-001
Bellows No.
11 10.5-17
OEM Part Number
AS91210-090R
Diameter (in)
Diameter (in): 13.7
OEM Cross Reference
Flxible 6-336-182; MCI/TMC 12M 4 6; MCI/TMC Service # 12F 4 34
Load at 100 psi (lb)
Load at 100 psi (lb): 8900
Load at 80 psi (lb)
Load at 80 psi (lb): 7000
Features
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
Optimized wall thickness for better fatigue life
Chemically Formulated Vulcanized Material Withstands Ozone Effects
100% Leak Tested
Optimized wall thickness for better fatigue life
Chemically Formulated Vulcanized Material Withstands Ozone Effects
100% Leak Tested
Max Height (in)
Max Height (in): 22
Min Height (in)
Min Height (in): 7
Use With
Neway Trailer Air: AR-70-9, 14, AR-70A-9, 14, AR-75-12, 1-12, AR-80-6.75, AR-85-A, AR-125-US-F, ARDST-246; Neway Powered Truck: ARDST-246-6, ARDSTM/L-246-6, ARDST-250 (W.Star), ARDSTML-123, 246 (6); W&C Trailers: TA-300-9, TA-3090-14
Ride Height (in)
Ride Height (in): 13.5
Weight (lb)
Weight (lb): 21.0496
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
