AS77950
Spring Air Hendrickson Auxiliary 20019
Kenworth®
IN STOCK
More than 10 are currently available
Ships within 1 business day
$159.95
$191.94
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

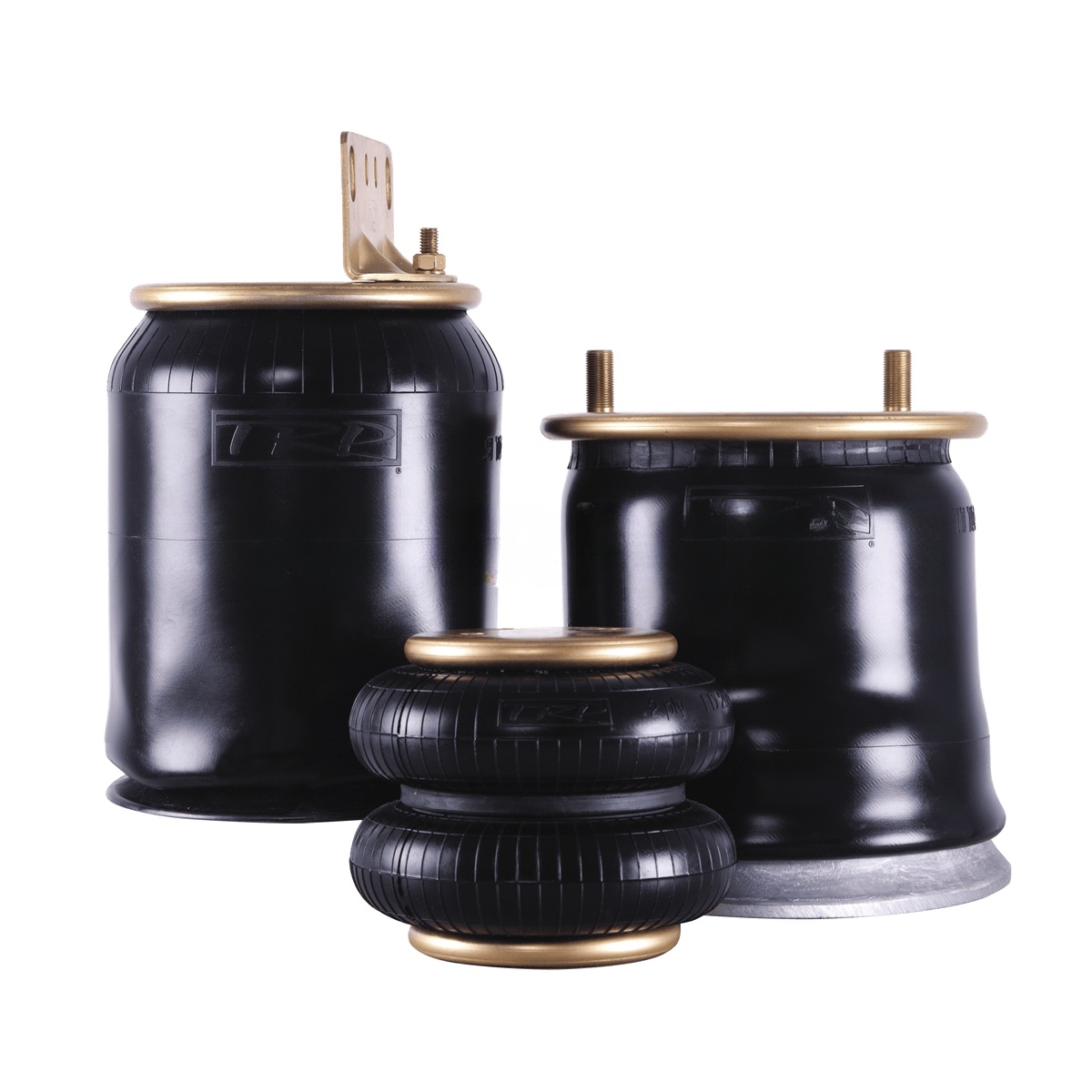

The Hendrickson Auxiliary Spring Air AS77950 is designed to support lift and suspension functions in Kenworth trucks. Made from high-quality vulcanized material, it withstands ozone effects and fatigue, ensuring durability over time. Its optimized wall thickness and leak-tested construction provide reliable performance under various load conditions. Suitable for Hendrickson lift systems, this component helps maintain proper vehicle height and stability, enhancing ride quality and safety. Whether for replacement or upgrade, this OEM-grade part guarantees compatibility and performance. Source One Parts Center is the best place to purchase genuine OEM parts for Kenworth vehicles, guaranteeing quality, reliability, and perfect fitment for your specific model.
SPECIFICATIONS
VMRS Code
016-014-008
OEM Part Number
AS77950-090R
Features
Chemically Formulated Vulcanized Material Withstands Ozone Effects
Optimized wall thickness for better fatigue life
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
100% Leak Tested
Optimized wall thickness for better fatigue life
Made With a Unique Fabric Material That Has a Higher Burst Rate for Longer Life
100% Leak Tested
Diameter (in)
Diameter (in): 9.8
Bellows No.
FD 200-19
Use With
Hendrickson Auxiliary; Hendrickson: HLN (Truck) (Lift), HLN (Trailer) (Lift), HLP (Lift), HLP (Trailer) (Lift), HLU (Lift), HLUS (Lift)
Load at 100 psi (lb)
Load at 100 psi (lb): 3200
Load at 80 psi (lb)
Load at 80 psi (lb): 2560
Max Height (in)
Max Height (in): 10.5
Min Height (in)
Min Height (in): 3
Ride Height (in)
Ride Height (in): 8
Weight (lb)
Weight (lb): 6.4174
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
