ADR1030

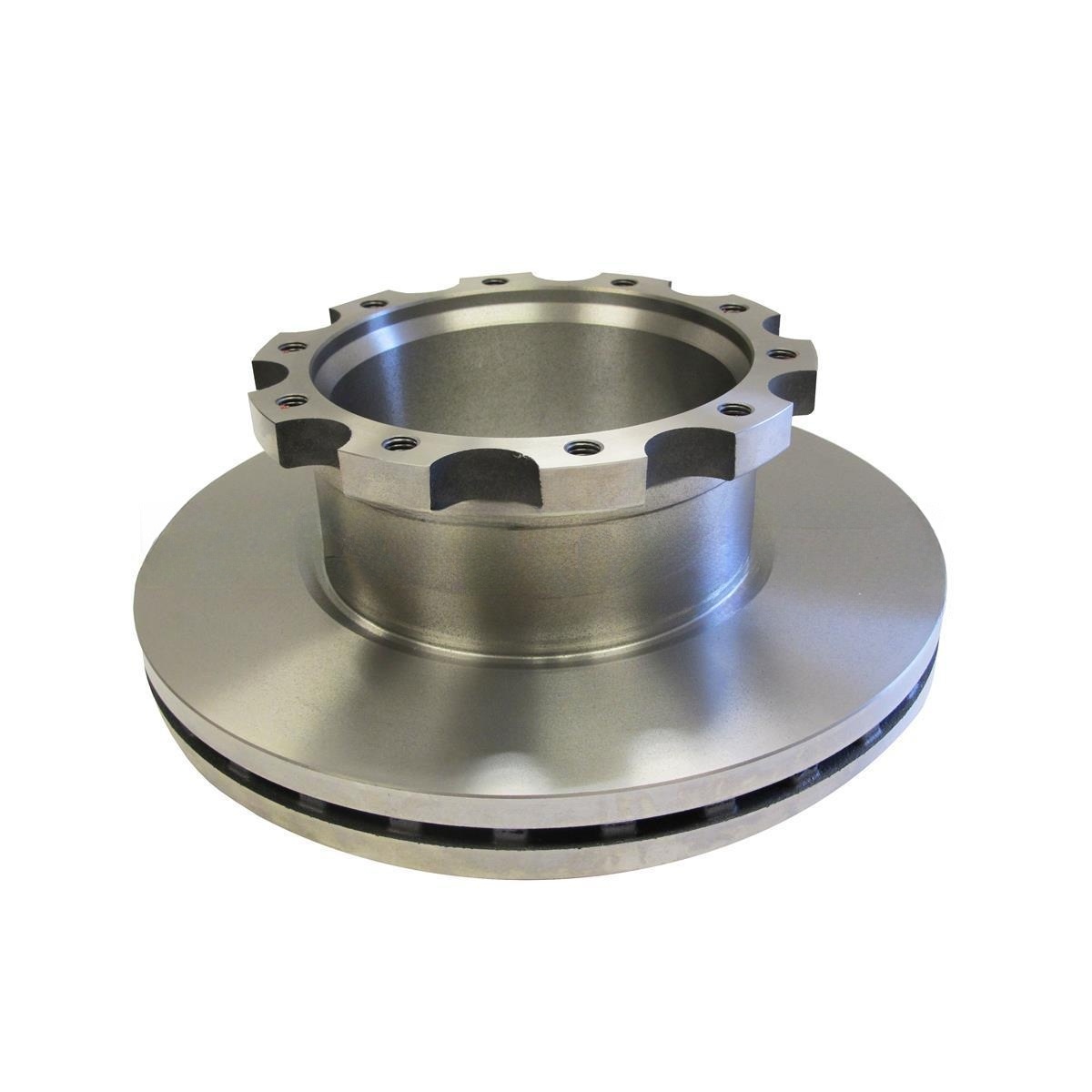

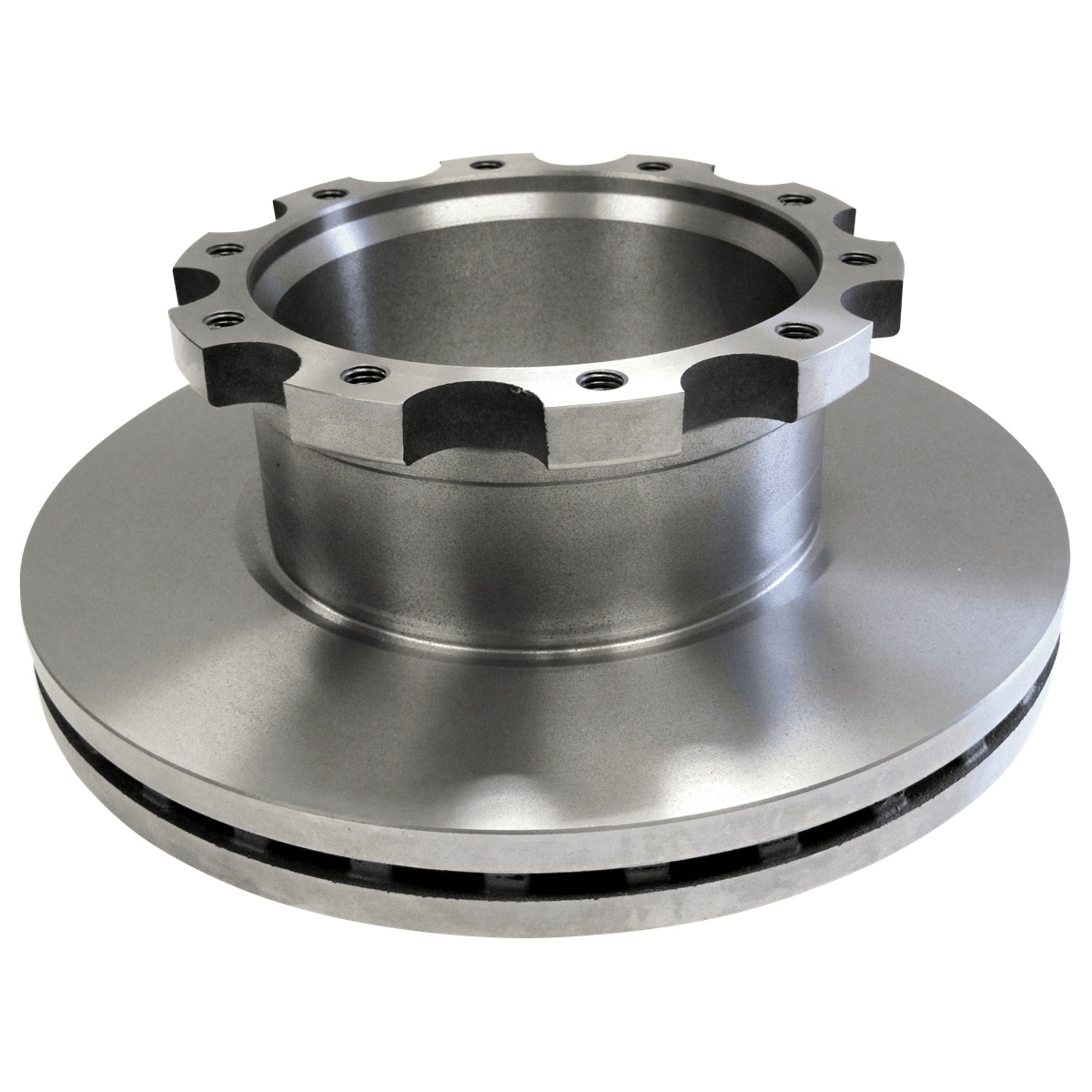

Air Disc Brake Rotor U-Shape 150mm Iron Hub
Kenworth®
IN STOCK
More than 10 are currently available
Ships within 1 business day
$389.95
$467.94
This truck part is made by Kenworth®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Air Disc Brake Rotor with U-shape design and 150mm iron hub is a critical component for your Kenworth truck's braking system. Featuring a U-shaped rotor style, this high-quality rotor provides excellent heat dissipation and consistent braking performance. With a 430mm outside diameter, 45mm disc thickness, and 10 bolt holes on a 249.5mm bolt circle, it ensures a secure fit and reliable operation. Designed for durability and efficiency, this rotor helps maintain optimal braking response under demanding conditions. Source One Parts Center offers genuine OEM brake parts, ensuring safety, performance, and longevity for your Kenworth truck.
SPECIFICATIONS
VMRS Code
013-017-001
F - Number of Bolt Holes
: 10
Bolt Hole Size
: 15.875
E - Bolt Circle Diameter
: 249.5
Note
: All Dimensions in MM
Rotor Style
: U-Shape
OEM Part Number
ADR1030-110E
Disc Thickness (B)
Disc Thickness (B): 45
Height (C)
Height (C): 150
Outside Diameter (A)
Outside Diameter (A): 430
