DESCRIPTION

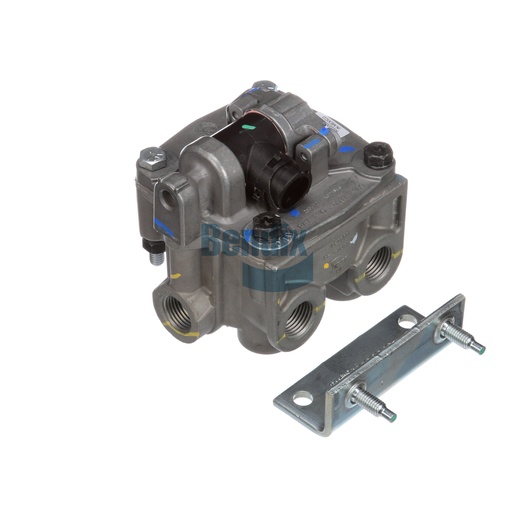

The Traction Relay is an innovative component designed to enhance the stability and traction of your commercial vehicle during operation. This valve plays a pivotal role in controlling the air supply to the brakes, ensuring that power is distributed effectively across the wheels. By optimizing the braking force, it helps prevent wheel lock-up, especially in slippery or uneven conditions, thereby improving safety and handling. The Traction Relay is engineered to operate flawlessly under a wide range of temperatures, ensuring consistent performance no matter the environment. Its compact design allows for easy installation and integration into your vehicle's existing brake system, providing an efficient solution for enhancing traction control. If you're looking for reliable and high-performance components, Source One Parts Center is the premier destination for genuine Bendix OEM parts that guarantee quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control Port
1/4-18 NPT
Width
101.0 mm (3.98 in)
Length
116.0 mm (4.57 in)
Voltage (Nominal)
12 Volts
Height
120.0 mm (4.72 in)
Maximum Operating Temperature
185 °F (85 °C)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Mounting Bracket Location
Bracket loose in box
Exhaust Port
Dust Shield
Mounting
M8 X 1.25-6g Stud (2x)
Country of Origin
Mexico
TMC Washer
RV040
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
3.34 lb
