$309.95
$371.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

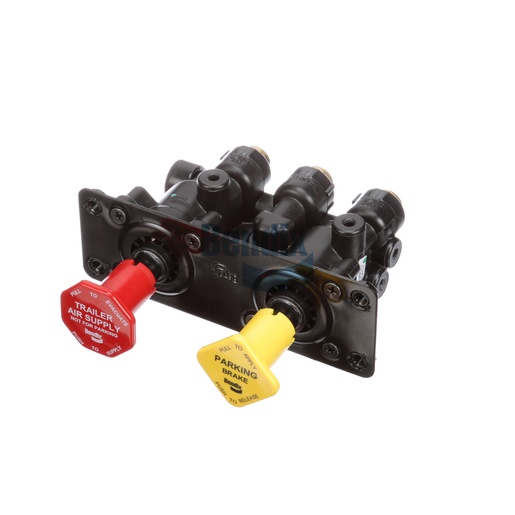

The Dash Valve from Bendix is an essential component that plays a critical role in controlling the braking system of air disc brakes. This valve allows for precise modulation of air pressure, ensuring immediate response and enhanced braking performance. Constructed to endure the rigors of commercial vehicle operation, the dash valve operates effectively within a wide temperature range, making it suitable for various driving conditions. Its multiple ports are designed for optimal air flow, simplifying installation while improving the overall efficiency of the braking system. For fleet managers and operators looking for reliable components, Source One Parts Center is the top choice for genuine Bendix OEM parts, ensuring your vehicle's braking system remains in peak condition.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Length
130.8 mm (5.15 in)
Width
165.1 mm (6.5 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Delivery 21 Port
3/8 PTC
Delivery 22 Port
3/8 PTC
Exhaust Port
3/8 PTC
Supply 11 Port
3/8 PTC
Supply 12 Port
3/8 PTC
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Height
65.3 mm (2.57 in)
Harmonized System (HS) Code
848120
Mounting
M6 x 1-6H (4x)
Country of Origin
Mexico
Button(s) Included
Yes
Weight
1.63 lb
