DESCRIPTION

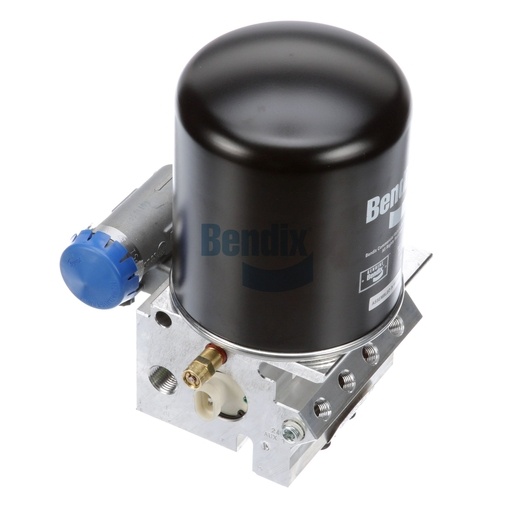

Introducing the Bendix Air Dryer, a vital component in air treatment systems designed to enhance the performance and longevity of your commercial vehicle's braking system. This air dryer effectively removes moisture and contaminants from the air supply, ensuring that your brakes operate smoothly and efficiently. With its non-adjustable governor type, it maintains optimal pressure levels, allowing for reliable operation under various conditions. The air dryer features a maximum inlet temperature of 160°F and a minimum operating temperature of -40°F, making it suitable for diverse environments. Its compact design facilitates easy installation in tight spaces, while the durable construction guarantees long-lasting performance. With a net weight of 15.5 lbs, it strikes the perfect balance between sturdiness and manageability. For genuine Bendix OEM parts, Source One Parts Center stands out as the best choice, providing high-quality components that ensure your vehicle's braking system operates at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Clearance to Remove Cartridge
1.00 IN
Supply Port
1/2-14 NPT
AUX 1 Delivery Port 1
1/4-18 NPT
AUX 1 Delivery Port 2
1/4-18 NPT
AUX 1 Delivery Port 3
1/4-18 NPT
AUX 1 Delivery Port 4
1/4-18 NPT
AUX 2 Delivery Port
1/4-18 NPT
PRI Delivery Port 21
1/4-18 NPT
SEC Delivery Port 22
1/4-18 NPT
Governor Unloader Port
1/8-27 NPT
Governor Reservoir Port
1/8-27 NPT (Plugged)
PRI Delivery Opening Pressure
103 PSI
Cut-in Pressure
110 PSI
AUX 1 Delivery Opening Pressure
112 PSI
AUX 2 Delivery Opening Pressure
112 PSI
SEC Delivery Opening Pressure
112 PSI
Heater / Thermostat Rating
12V / 90W
Cut-out Pressure
130 PSI
Safety Valve Opening Pressure
153 PSI
Length
158.0 mm (6.22 in)
Maximum Inlet Temperature
160 °F (71 °C)
Width
199.0 mm (7.83 in)
Height
286.0 mm (11.26 in)
Pressure Protection Valve Configuration
4 in Parallel
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Cartridge Thread
M39 x 1.5-6H RH
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Mounting
Mount to Purge Reservoir (Not Included)
Governor Type
Non-Adjustable
Cautionary Note(s)
Pressure protection valve configs are not interchangeable.
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Heater Connector Color
White
Governor Included
Yes
Weight
15.5 lb
