$98.95
$118.74
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

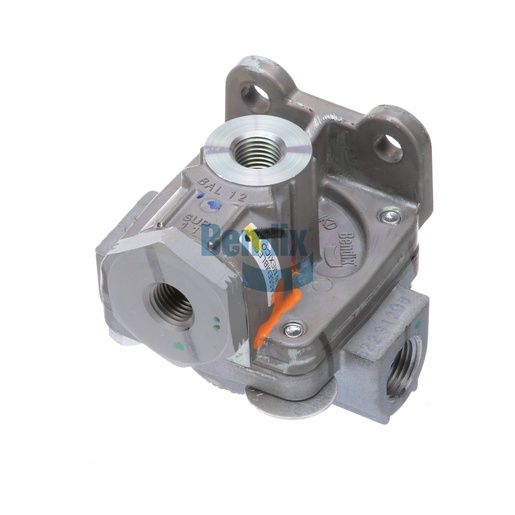

The Quick Release Valve is an essential part of your vehicle's braking system, designed to improve the efficiency and responsiveness of air brake applications. This valve allows for rapid release of air pressure, ensuring that your brakes operate smoothly and effectively. With a maximum operating temperature of 200°F and a net weight of 0.5 kg, this durable valve is built to withstand the demands of heavy-duty use. Its unique design includes multiple ports for easy installation and flexibility in various configurations, making it an ideal choice for fleet maintenance or individual truck repairs. By ensuring proper air flow management, the Quick Release Valve enhances the safety and performance of your vehicle's braking system. For the best selection of genuine Bendix OEM parts, choose Source One Parts Center, where quality and reliability meet exceptional service.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-008: Quick Release Valve - Air Brake
Balance Port
1/4-18 NPT (Female)
Supply Port
1/4-18 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Differential Pressure
5 - 8 PSI
Height
69.1 mm (2.72 in)
Length
80.0 mm (3.15 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico, India
Foam Insert Included
No
Sustained Hold
No
Zero Hysteresis
No
Exhaust Port
Open
TMC Washer
QR065
Mounting
Ø .34 IN (2x)
Weight
1.1 lb
