$124.95
$149.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

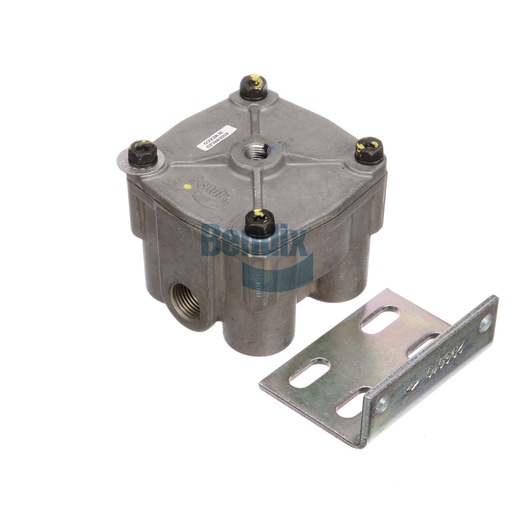

The Relay Valve from Bendix is a key component designed to enhance the efficiency and reliability of air brake systems. Engineered with precision, this valve ensures quick response times, allowing for smoother braking performance, which is crucial for safety in commercial vehicles. With a robust design that can withstand the rigors of heavy-duty use, it operates effectively in a wide range of temperatures. Weighing only 1.4 kg, this valve is lightweight yet does not compromise on durability, making it easy to install and maintain. Investing in a genuine Bendix OEM Relay Valve guarantees optimal function and compatibility within your braking system. Source One Parts Center is your go-to source for high-quality Bendix parts, ensuring you receive the best for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
7.5 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV075
Weight
3.13 lb
