$87.95
$105.54
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

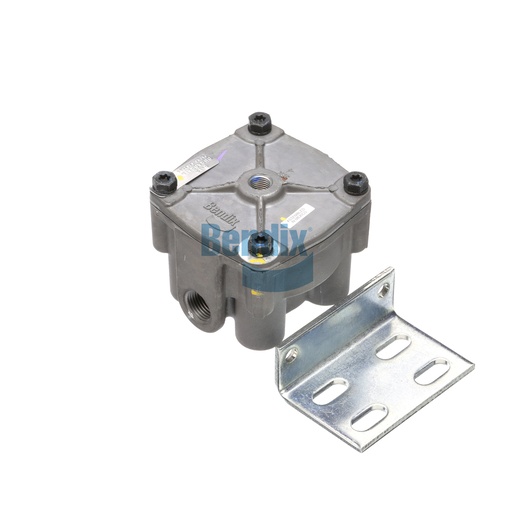

The Relay Valve from Bendix is engineered to provide optimal control and efficiency in your vehicle's air brake system. This essential component plays a crucial role in managing air flow, ensuring that your brakes respond promptly and accurately under various driving conditions. Designed with a crack pressure of 4.0 PSI, this relay valve is capable of meeting the demanding requirements of commercial vehicles. Its construction allows for a maximum operating temperature of 200°F, making it suitable for even the most challenging environments. The valve’s compact design and lightweight construction make it easy to install while maintaining the integrity of your braking system. By choosing genuine Bendix OEM parts from Source One Parts Center, you can trust that you're getting a product that meets the highest standards of safety and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
Cautionary Note(s)
Product contains the DuraDrain relay piston for self-draining.
TMC Washer
RV040
Weight
2.98 lb
