$68.95
$82.74
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

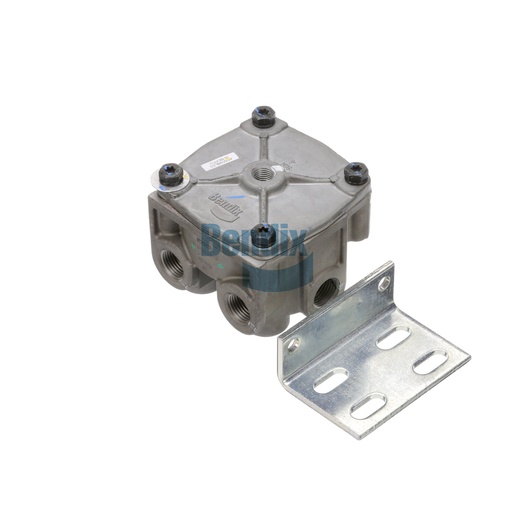

The Bendix Relay Valve is an integral part of the air brake system in commercial vehicles, designed to ensure precise control over brake pressure and performance. Made in Mexico, this valve features a robust design that supports heavy-duty applications, maintaining reliability even in demanding environments. With a maximum operating temperature of 200°F and a minimum of -40°F, it delivers consistent performance under a wide range of conditions. The relay valve's efficient airflow regulation enhances braking responsiveness, making it crucial for vehicle safety. Weighing just 2.91 pounds, its compact design allows for straightforward installation. For genuine Bendix parts that you can rely on, Source One Parts Center is the top choice for quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Length
102.0 mm (4.02 in)
Width
102.0 mm (4.02 in)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Height
98.0 mm (3.86 in)
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV055
Weight
2.91 lb
