This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

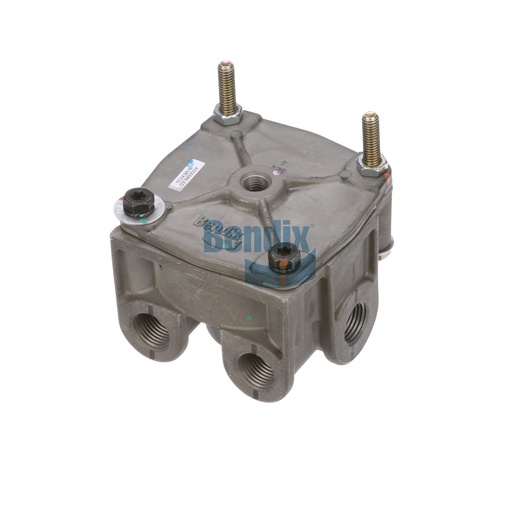

The Bendix Relay Valve is a vital component in your vehicle's air brake system, ensuring efficient and reliable braking performance. Designed with precision, this valve features a unique body configuration that allows for two supply and two delivery ports, optimizing airflow and reducing pressure loss. With a crack pressure of 4.0 PSI, this relay valve ensures that your braking system responds promptly, enhancing vehicle safety during operation. The valve is built to withstand extreme temperatures, with a maximum operating temperature of 200 °F, making it ideal for heavy-duty applications. Its compact design and easy installation allow for seamless integration into existing systems, making it a popular choice for fleet maintenance. When seeking genuine Bendix OEM parts, Source One Parts Center is your go-to source, providing quality products that ensure your vehicle operates at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Length
101.0 mm (3.98 in)
Width
102.0 mm (4.02 in)
Height
120.0 mm (4.72 in)
Mounting Orientation (CW from Front Face)
180°
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Mounting Bracket Direction
Up
Weight
2.13 lb
