$509.95
$611.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

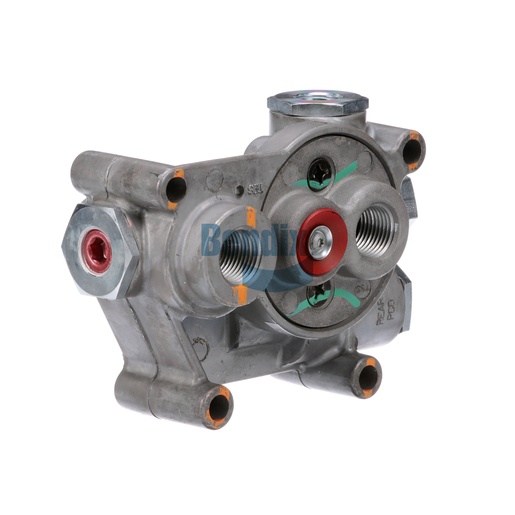

The Bendix Tractor Protection Valve is an indispensable component for ensuring the safety and functionality of your truck's braking system. This valve is designed to protect the tractor's braking system in the event of a trailer disconnect or air loss, automatically isolating the trailer's air supply and preventing unintended brake activation. With a durable construction that can handle a maximum operating temperature of 221°F, it is built to withstand the rigors of the road. Its innovative features include multiple ports for quick and efficient installation, and a service line opening pressure of 50 PSI, ensuring reliable operation. The Tractor Protection Valve enhances the overall safety of your vehicle by maintaining effective air pressure and preventing potential accidents. When you purchase a Bendix Tractor Protection Valve from Source One Parts Center, you are guaranteed to receive a product that meets OEM standards for quality and reliability. Trust Source One Parts Center for all your genuine Bendix OEM parts, ensuring your commercial vehicles are always road-ready.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-016: Tractor Protection Control Valve
Trailer Service Port
1/2-14 NPT
Trailer Supply Port
1/2-14 NPT
Tractor Protection Port (Firewall)
1/4-18 NPT
Trailer Control Port
1/4-18 NPT
Stop Light Switch Port
1/4-18 NPT (Plugged)
Stop Light Switch Port (Firewall)
1/8-27 NPT
Service Line Shut-Off Pressure
10 PSI (MIN)
Width
106.2 mm (4.18 in)
Length
144.8 mm (5.7 in)
Maximum Operating Temperature
221 °F (105 °C)
Tractor Control Port (Primary)
3/8-18 NPT
Tractor Control Port (Secondary)
3/8-18 NPT
Tractor Protection Port
3/8-18 NPT (Plugged)
Service Line Opening Pressure
50 PSI (MAX)
Height
69.9 mm (2.75 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Type
Firewall
Country of Origin
Mexico
Trailer Service Quick Release
Yes
Vent
Yes
Mounting
Ø .34 IN (4x)
Weight
2.62 lb
