$199.95
$239.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

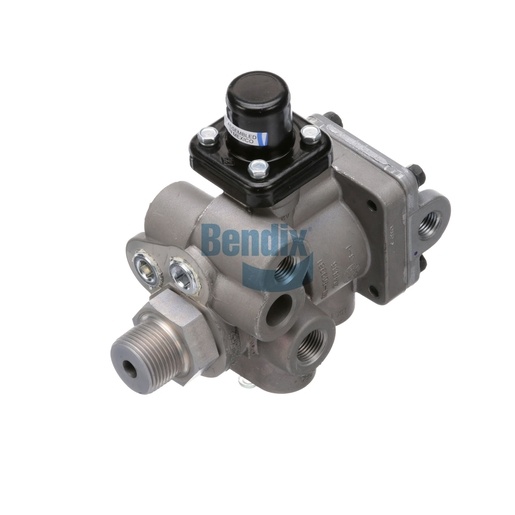

The Bendix Spring Brake Valve is an essential component in the air brake system of commercial vehicles, providing reliable control over the spring brake function. Designed for heavy-duty applications, this valve features an anti-compounding mechanism to prevent simultaneous application of the service and spring brakes, enhancing safety and performance. With multiple delivery ports, it allows for flexible installation options and is built to withstand the rigors of demanding environments. This valve ensures that your braking system operates smoothly and efficiently, giving you confidence on the road. For the highest quality and reliability, choose Bendix. Source One Parts Center is the best place to find genuine Bendix OEM parts, ensuring you get the best for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-111: Hand Valve - Trailer Spring Brake Release (On Trailer)
Service Reservoir Port 1
1/4-18 NPT
Service Reservoir Port 2
1/4-18 NPT
Trailer Service Port
1/4-18 NPT
Trailer Supply Port
1/4-18 NPT
Height
142.2 mm (5.6 in)
Length
154.7 mm (6.09 in)
Maximum Operating Temperature
200 °F (93 °C)
Spring Brake Reservoir Supply Port
3/4-14 NPT (with Check Valve)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Closing Pressure
70 PSI
Width
76.2 mm (3.0 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Thread Sealant
No Sealant
Brake Charging Priority
Spring Brake Priority
Anti-Compounding
Yes
Weight
2.71 lb
