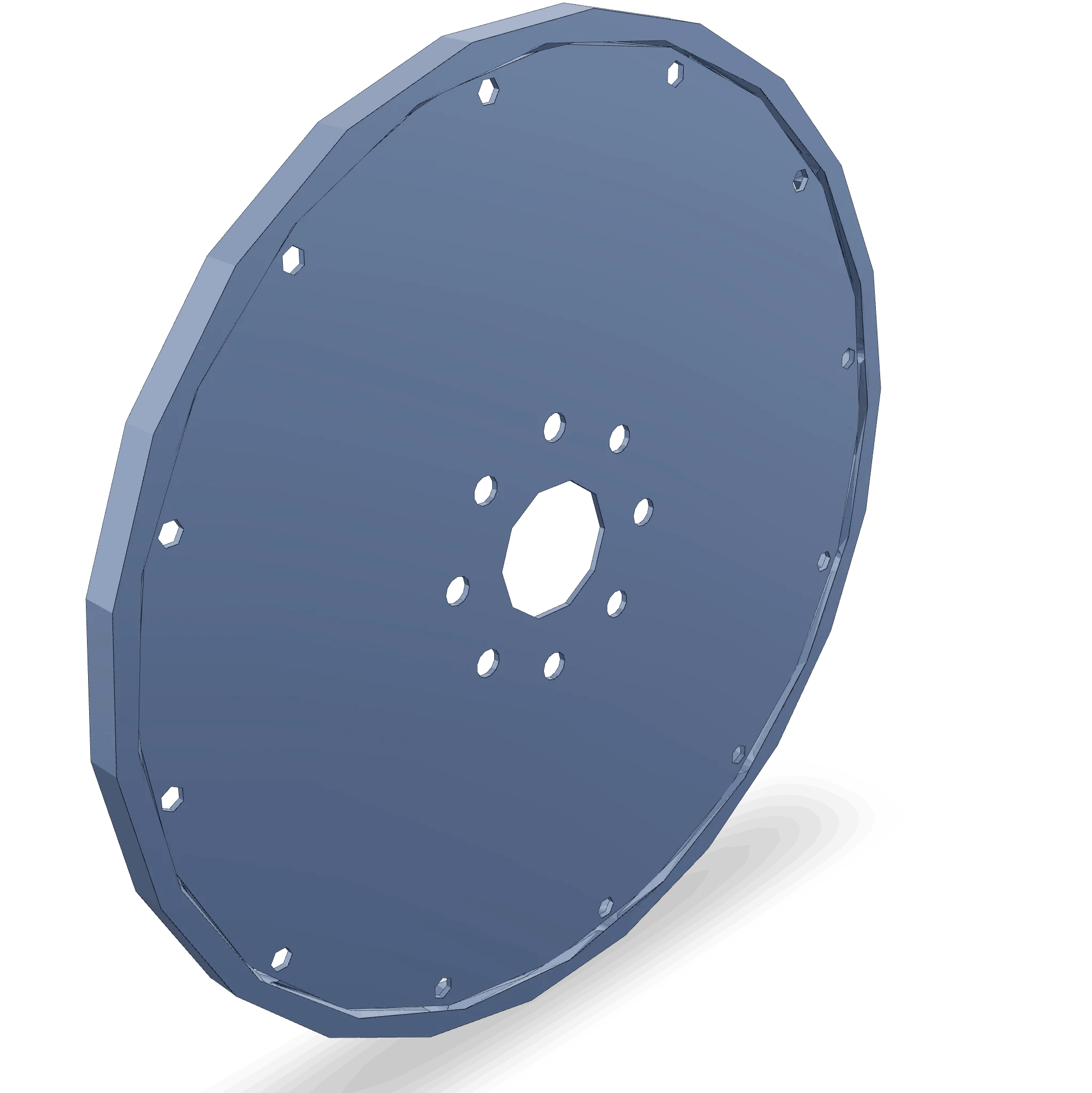

3911260
Flexplate
Cummins®

The Cummins 3911260 Flexplate is a component designed for use in heavy-duty trucks. It serves as a link between the engine and the transmission, facilitating the transfer of power. Understanding its purpose and significance is fundamental for maintaining and optimizing the performance of heavy-duty trucks.

Basic Concepts of Flexplates

A flexplate is a component found in automatic transmission systems, analogous to the flywheel in manual transmissions. It is typically made from a flexible material, allowing it to absorb and dampen the vibrations produced by the engine. The flexplate connects the engine to the torque converter, which is the first component in the automatic transmission system. This connection enables the smooth transfer of power from the engine to the transmission ¹.

Purpose of the 3911260 Flexplate

The 3911260 Flexplate plays a role in the operation of a truck by connecting the engine to the torque converter. This connection allows for the efficient transfer of power generated by the engine to the transmission. The flexplate’s design helps in managing the vibrations and stresses that occur during engine operation, contributing to the overall smoothness and reliability of the drivetrain ⁴.

Key Features

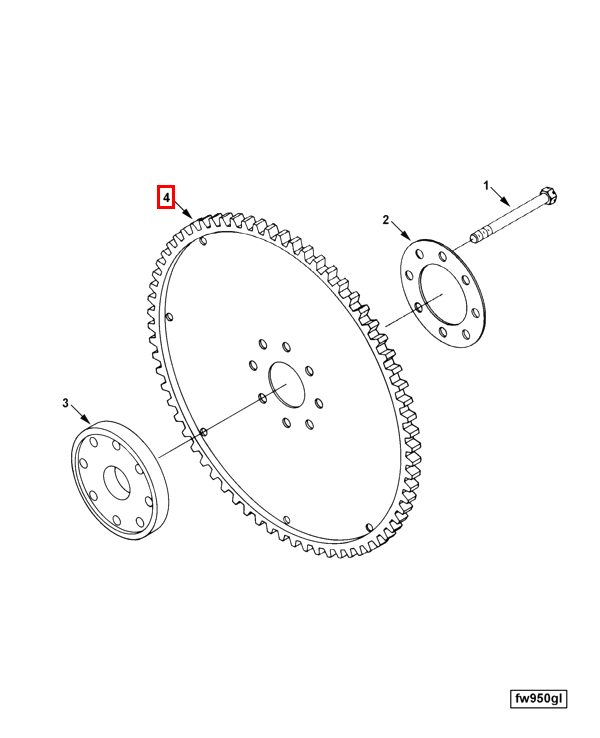

The Cummins 3911260 Flexplate is constructed with a focus on durability and performance. It is made from high-strength materials to withstand the rigors of heavy-duty truck operation. The flexplate is designed with a specific number of bolts for secure attachment to the engine and features a pattern of holes or slots to accommodate the torque converter’s attachment points. Its design may include unique characteristics to enhance performance and longevity ².

Benefits

Using the 3911260 Flexplate offers several advantages. Its robust construction contributes to durability, ensuring it can withstand the demanding conditions of heavy-duty truck use. The design of the flexplate enhances efficiency by smoothly transferring power from the engine to the transmission. Additionally, it may offer performance enhancements by reducing vibrations and stresses in the drivetrain ³.

Installation Process

Installing the 3911260 Flexplate requires careful attention to detail. The process involves securing the flexplate to the engine using the specified number of bolts, ensuring a tight and even fit. It is then connected to the torque converter, aligning the attachment points precisely. Special considerations may include torque specifications for the bolts and ensuring the flexplate is properly aligned with the engine and transmission components ⁴.

Troubleshooting Common Issues

Common issues associated with flexplates include noise, vibration, and failure. These problems can often be traced to improper installation, wear and tear, or manufacturing defects. Troubleshooting steps may involve inspecting the flexplate for signs of damage, ensuring it is properly installed, and checking for any loose or missing bolts. Addressing these issues promptly can help maintain the performance and reliability of the truck’s drivetrain ⁴.

Maintenance Tips

Maintaining the 3911260 Flexplate is key to ensuring its longevity and optimal performance. Regular inspections should be conducted to check for signs of wear, damage, or looseness. Care procedures may include cleaning the flexplate and its attachment points to prevent the buildup of dirt and debris, which can affect performance. Following manufacturer recommendations for inspection intervals and maintenance procedures can help extend the life of the flexplate ⁴.

Cummins Corporation

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established itself as a trusted name in the automotive and heavy-duty truck industry. The company’s commitment to innovation, quality, and customer satisfaction has made it a preferred choice for professionals in the field.

Flexplate 3911260 Compatibility with Cummins Engines

The Flexplate part number 3911260, manufactured by Cummins, is designed to fit a variety of Cummins engines. Here is a detailed look at its compatibility:

6C8.3 Series

• 6C8.3: This engine model is compatible with the Flexplate 3911260.

C GAS PLUS CM556 Series

• C GAS PLUS CM556: The Flexplate 3911260 is suitable for this engine variant.

C8.3 G Series

• C8.3 G: This engine model also fits the Flexplate 3911260.

ISC CM554 Series

• ISC CM554: The Flexplate 3911260 is compatible with the ISC CM554 engine.

ISL CM554 Series

• ISL CM554: This engine model is designed to work with the Flexplate 3911260.

QSC8.3 CM554 Series

• QSC8.3 CM554: The Flexplate 3911260 fits this engine variant.

QSL9 CM554 Series

• QSL9 CM554: The Flexplate 3911260 is compatible with the QSL9 CM554 engine.

This Flexplate is engineered to ensure a proper fit and function across these engine models, providing a reliable connection between the engine and the transmission.

Role of Part 3911260 Flexplate in Engine Systems

The Flexplate, specifically part 3911260, is an integral component in the operation of engine systems, particularly in automatic transmission setups. This component serves as the connection point between the engine and the torque converter, facilitating the transfer of power from the engine to the transmission.

When the engine fires, the Flexplate, attached to the crankshaft, begins to rotate. This rotation is transmitted through the Flexplate to the torque converter, which is responsible for multiplying the engine’s torque before sending it to the transmission. The flexibility of the Flexplate allows it to absorb the vibrations and stresses generated by the engine, ensuring smooth operation and reducing wear on connected components.

In addition to its role in power transmission, the Flexplate also houses the starter ring gear. This gear engages with the starter motor’s pinion gear during engine start-up, allowing the engine to crank and start. The design of the Flexplate ensures that this engagement is smooth and efficient, minimizing the risk of damage to the starter motor or the Flexplate itself.

Furthermore, the Flexplate’s location at the rear of the engine means it interacts with several other components, including the flywheel housing and the clutch assembly in manual transmission systems. Its design must account for these interactions, ensuring compatibility and efficient operation within the engine system.

Overall, the Flexplate part 3911260 plays a significant role in the efficient and smooth operation of engine systems, particularly in its interaction with the torque converter, starter motor, and other rear engine components.

Conclusion

The Cummins 3911260 Flexplate is a vital component in the drivetrain of heavy-duty trucks, ensuring efficient power transfer and smooth operation. Its robust construction, designed to withstand the rigors of heavy-duty use, contributes to the durability and reliability of the vehicle. Regular maintenance and proper installation are crucial to maximizing the performance and longevity of this Cummins part. Understanding its role and significance can greatly aid in the maintenance and optimization of heavy-duty trucks.
