2028418L92
CAB, SLEEPER
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$6,699.95
$8,039.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
CAB, SLEEPER

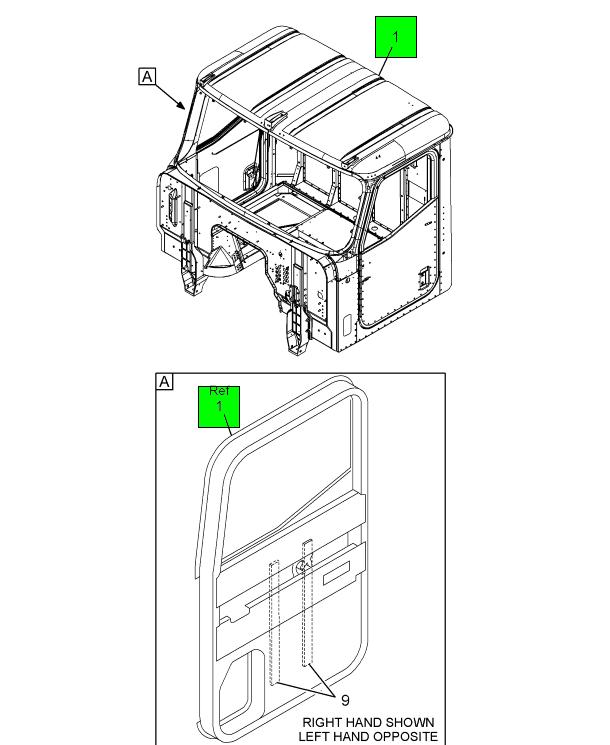

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| HEADER, WINDSHIELD OPENING | 1 | 2025944C3 |
| MOULDING ,DRIP SIDE GIVE LEFT OR RIGHT DRIP- LH | 1 | 403290C2 |
| MOULDING ,DRIP SIDE GIVE LEFT OR RIGHT DRIP- RIGHT HAND | 1 | 403291C2 |
| MOULDING ,DRIP REAR DRIP REAR | 1 | 403292C2 |
| STRAINER, HEAD LINING PANEL | 4 | 2008860C3 |
| HEADER, WINDSHIELD OPENING | 1 | 2025944C4 |
| BAR DOOR HINGE SPACER | 2 | 403360C5 |
| SUPPORT | 2 | 598557C4 |
| RIVET, STEEL BLIND 3/16" .214-.437 GRIP | 11 | 2040956C1 |
| PRODUCT GRAPHIC ,PL IDENT GIVE DESCRI CAB SERIAL NUMBER TAG | 1 | 1087533R1 |
| HEADER, WINDSHIELD OPENING | 1 | 2025944C2 |
| BOLT W/LOCK WASHER 1/4" X 7/8" | 6 | 455344 |
| SUPPORT FRONT CAB MOUNTING-UPPER-RIGHT HAND | 1 | 598499C1 |
| COLLAR MAG-GRIP HUCK BOLT 1/4" DIAMETER | 4 | 591546C1 |
| PIN, HUCK BOLT MAGNA-GRIP 1/4" DIAMETER X 1/16"-5/8" | 4 | 591544C1 |
| UNDERBODY, ASSEMBLY CAB OR COWL ETC ASM* WELDED | 1 | 2026387C91 |
| PANEL SIDE-WELDED-LH | 1 | 2005199C93 |
| PANEL SIDE-WELDED-RIGHT HAND | 1 | 2005200C93 |
| PANEL ASSEMBLY WELDED | 1 | 2026382C93 |
| GUSSET, CAB BACK PANEL LOWER LEFT | 1 | 2008057C1 |
| GUSSET, CAB BACK PANEL LOWER RIGHT | 1 | 2008058C1 |
| PANEL, COWL UPPER OUTER | 1 | 2015306C1 |
| BACK-WELDED W/SLEEPER | 1 | 2006919C91 |
| PANEL, OUTER CAB ROOF | 1 | 2016261C4 |
| SCREW MACH HEXAGON HEAD | 10 | 443874 |
| DOOR, CAB LEFT 1680722C91 | 1 | 1680724C92 |
| SCREW SEMS ASSEMBLY HEXAGON HEAD 5/16-18 UNC X 1.0 | 18 | 403810C91 |
| DOOR, CAB LEFT 1680722C91 | 1 | 1680725C91 |
| WASHER PLAIN | 4 | 21331R1 |
| SCREW, SEMS HEXAGON HEAD 3/8"-16 UNC X 2" | 14 | 548834C1 |
| RIVET, SOLID BRAZIER HEAD 3/16" X 1/2" LONG | 98 | 351555C1 |
| RIVET, BRAZIER | 26 | 351556C1 |
| REINFORCEMENT WINDSHIELD HDER-LH | 1 | 403265C1 |
| REINFORCEMENT WINDSHIELD HDER-RIGHT HAND | 1 | 403266C1 |
| HEADER, ROOF BACK PANEL | 1 | 556551C5 |
| HEADER, ROOF BACK PANEL | 1 | 556551C2 |
| EXTENSION HDER REINFORCEMENT-UPPER-LH | 1 | 403273C1 |
| EXTENSION HDER REINFORCEMENT-UPPER-RIGHT HAND | 1 | 403274C1 |
| GUSSET, BACK PANEL LOWER | 2 | 598489C2 |
| MOULDING ,DRIP SIDE GIVE LEFT OR RIGHT DRIP- LH | 1 | 403290C1 |
| MOULDING ,DRIP SIDE GIVE LEFT OR RIGHT DRIP- RIGHT HAND | 1 | 403291C1 |
| MOULDING ,DRIP REAR DRIP REAR | 1 | 403292C1 |
| BRACKET, MOUNTING FRONT CAB LEFT | 1 | 598196C2 |
| BOLT 3/8" X 1 1/2" UNC | 2 | 24841R1 |
| WASHER FLAT .406" X .812" X .089" | 2 | 25709R1 |
| BRACKET, MOUNTING FRONT CAB RIGHT | 1 | 598197C2 |
| BAR DOOR HINGE SPACER | 2 | 403360C4 |
| BAR, SPACER DOOR HINGE ALUMINUM | 4 | 428290C3 |
| RIVET, BLIND | 49 | 2040952C1 |
| REINFORCEMENT FRONT FLOOR | 1 | 598490C2 |
| SEAL, COWL VENT HINGE SLOT | 2 | 441067C1 |
| BAR | 2 | 450708C2 |
| SUPPORT | 2 | 598557C3 |
| PIN, LATCH STRIKER | 2 | 1677462C1 |
| REINFORCEMENT CAB ROOF-LIGHT | 1 | 593815C3 |
| SUPPORT FRONT CAB MOUNTING-LH | 2 | 598497C2 |
| SUPPORT FRONT CAB MOUNTING-LH | 2 | 557275C1 |
| SUPPORT FLOOR REINFORCEMENT | 1 | 588054C2 |
| RIVET, ALUMINUM BLIND 1/4" .080-.375 GRIP | 8 | 2040958C1 |
| PIN, HUCK BOLT ALUMINUM MAGNA-GRIP 3/16" DIAMETER X 3/16"-5/16" | 22 | 570633C1 |
| RIVET, BLIND CHERRY | 16 | 791280C1 |
| COLLAR, HUCK BOLT | 22 | 570634C1 |
| RIVET, SPECIAL SOLID 3/16" X 7/16" | 20 | 9401792 |
| BOW, CAB TOP OR ROOF TOP OR ROOF CENTER ROOF | 1 | 556602C2 |
| PLATE, LIGHT MOUNTING | 1 | 2008452C2 |
| STRAINER, HEAD LINING PANEL | 4 | 2008860C2 |
| SEALANT EXPANDABLE 1/4 X 1 X 3 1/2 INCHES | 5 | 2643612R1 |
| COLLAR, HUCK BOLT | 99 | 591545C1 |
| BRACKET, MOUNTING SPEAKER | 2 | 1649091C1 |
| RIVET, BLIND 3/16" | 4 | 487639C1 |
| PLATE TAPPING-VISOR MOUNTING | 2 | 1650712C1 |
| RIVET, STEEL BLIND 3/16" .062-.270 GRIP | 4 | 2040955C1 |
| RIVET, BLIND 3/16" | 2 | 487642C1 |
| COVER, AIR DUCT DEFROSTER | 1 | 2004964C1 |
| SEALANT SEALANT, CAB JOINT TAPE 3/32 X 1/2 ROLL T | 8499 | 2643833R1 |
| PIN, HUCK BOLT MAGNA-GRIP STEEL 3/16" DIAMETER X 1/16"-5/8" | 99 | 591543C1 |
| RIVET, ALUMINUM BLIND 3/16" .214-.437 GRIP | 21 | 2040953C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
