$2,999.95
$3,599.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

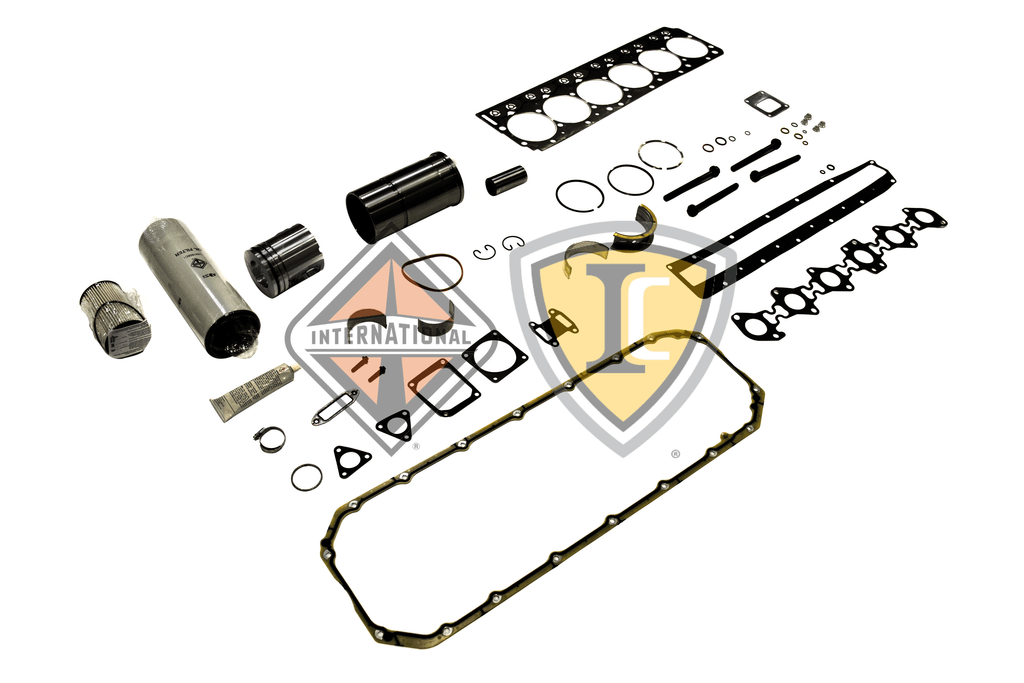

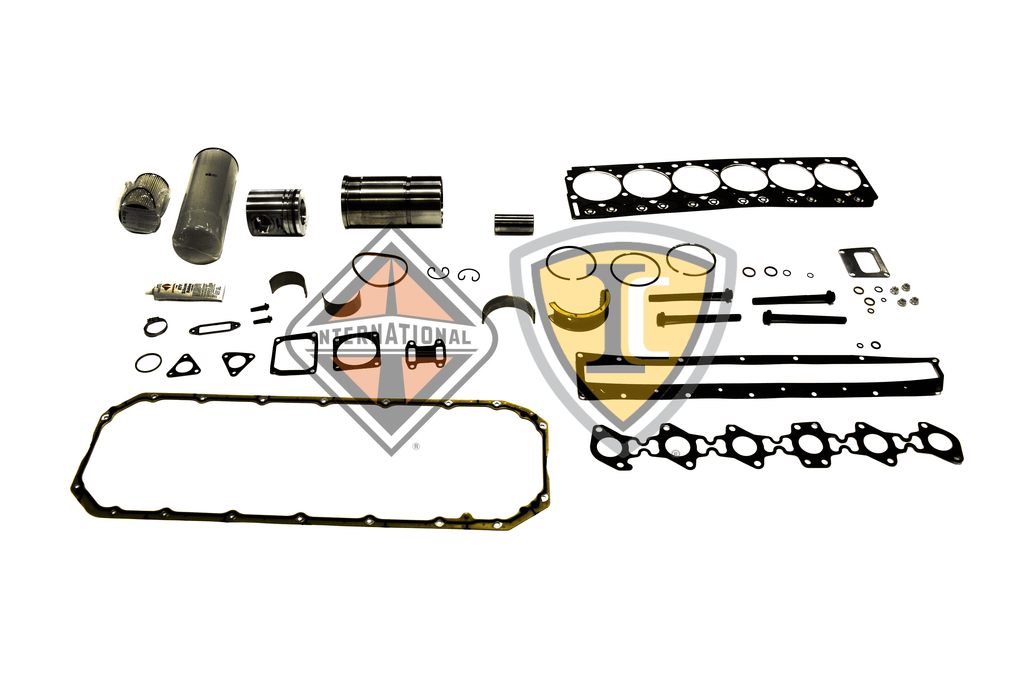

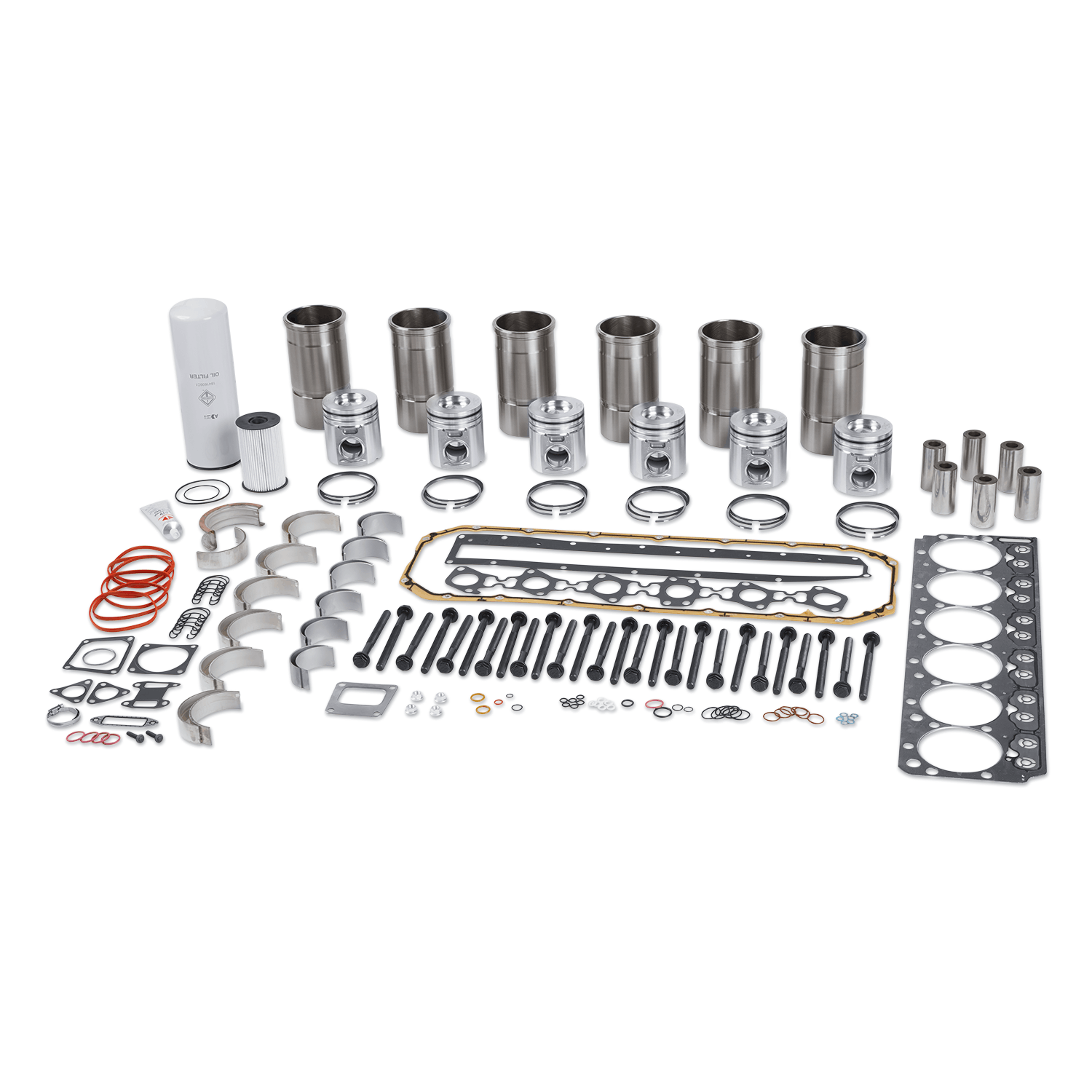

An engine overhaul kit is a package of replacement parts that are used to rebuild an engine. The kit typically includes components such as pistons, piston rings, bearings, gaskets, and seals. The Engine Overhaul Kit for International DT466, I313 Engine, part number 1890946C94, is specifically designed for the International DT466 and I313 engines and includes all the necessary parts to completely overhaul the engine.
RELATED PARTS
SPECIFICATIONS
Engine Platform
I313 2004 DT466/HT570
OEM Description
KIT, ENGINE OVERHAUL 466, I313
Weight
85.18 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| GASKET LIQUID 6 OUNCE | 1 | 1830858C1 |
| KIT, FUEL FILTER W/GASKET | 1 | 1842638C92 |
| KIT, OIL FILTER LONG | 1 | 1842639C92 |
| KIT, CYLINDER HEAD GASKET I313 | 1 | 1889245C95 |
| GASKET OIL PAN | 1 | 1836197C1 |
| GASKET OIL SUCTION TUBE | 1 | 1841296C1 |
| KIT PISTON SLEEVE AND RING 466 | 6 | 1842554C95 |
| KIT CRANKSHAFT FRONT BEARING- STANDARD | 6 | 1842566C92 |
| KIT CRANKSHAFT REAR BEARING- STANDARD | 1 | 1842567C92 |
| ROD CONNECTING- BEARING- STANDARD KIT | 6 | 1842570C92 |
| KIT, EGR COOLER SEAL | 1 | 1842588C93 |
| KIT, EGR MIXER SEAL | 1 | 1842592C91 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
