DS19060SRBC557EX
EXCH CARRIER 39I 19060S PB BC 557
Navistar International®
AVAILABLE
1 is currently available
Ships within 7-9 business days
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
EXCH CARRIER 39I 19060S PB BC 557

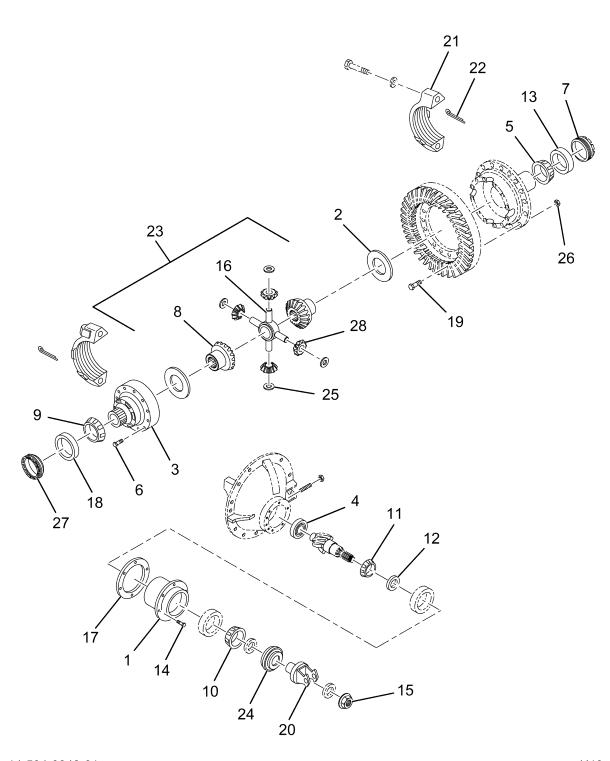

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CAGE, WITH CUPS | 1 | 2518856C91 |
| BEARING CONE /ROLLERS | 1 | ETN0134308 |
| BEARING CONE /ROLLERS | 1 | ETN0134306 |
| SPACER, PINION BEARING .623" | 1 | ZBP0091552 |
| SPACER, PINION BEARING .623" | 1 | ETN0091552 |
| BEARING CUP | 1 | ETN0134298 |
| BOLT, PINION BEARING CAGE | 6 | DS210115 |
| BOLT, PINION BEARING CAGE | 6 | ETN0210115 |
| NUT, MOUNTING COMPANION FLANGE M36 X 1.5-4H | 1 | ETN0127589 |
| SPIDER, DIFFERENTIAL | 1 | ETN0127359 |
| SHIM, CAGE INPUT SHAFT .01" | 1 | ETN0127597 |
| BEARING CUP | 1 | ETN0134301 |
| BOLT, CASE DIFF | 16 | 2515108C91 |
| WASHER, THRUST DIFFERENTIAL SIDE GEAR | 2 | ETN0127386 |
| SLINGER | 1 | DS139782 |
| CARRIER CAPS ASSEMBLY | 1 | ETN0127603 |
| PIN, COTTER | 2 | ETN0090873 |
| SEAL, FORWARD REAR DIFF INPUT SHAFT | 1 | 2516396C91 |
| SEAL OIL AXLE SHAFT | 1 | ETN0127379 |
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | ETN0129305 |
| NUT, BOLT DIFFERENTIAL CASE | 16 | ETN0126216 |
| ADJUSTER DIFFERENTIAL BEARING LEFT OR RIGHT | 1 | ETN0129128 |
| " GEAR, PINION " | 4 | DS133761 |
| " GEAR, PINION " | 4 | ETN0133761 |
| CASE DIFFERENTIAL PLN HALF STANDARD S/RS404 | 1 | ETN0132437 |
| BEARING, PINION PILOT | 1 | 2518855C91 |
| BEARING CONE /ROLLERS | 1 | ETN0134297 |
| BOLT, DIFFERENTIAL CASE | 12 | ETN0127465 |
| ADJUSTER, BEARING DIFFERENTIAL, PLAIN HALF | 1 | 2516736C91 |
| GEAR, SIDE DIFFERENTIAL 39 SPLINE | 2 | ETN0127367 |
| BEARING CONE /ROLLERS | 1 | ETN0134300 |
CROSS REFERENCES
- DANA 19060SRBC557EX
