FLTHUBNSTW

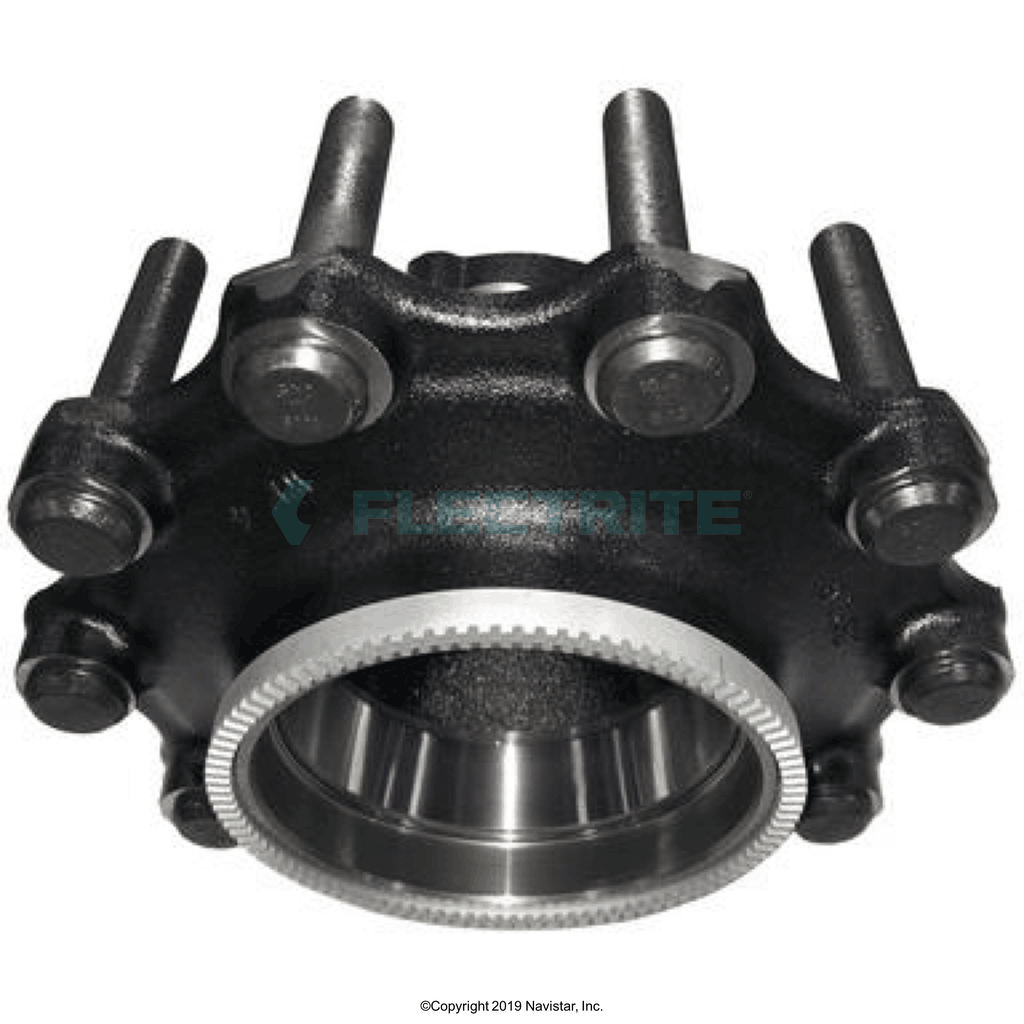

Trailer Hub Assembly
Fleetrite
AVAILABLE
More than 10 are currently available
Ships within 7-9 business days
$174.95
$209.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Fleetrite. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Fleetrite trailer hubs are made in the USA with precision machining and are E-coated on the inside and outside. Large oil capacity extends the life of the bearings and seal. Includes installed bearing cups, serviceable on both ABS and non-ABS applications, for hub piloted wheels with outboard mounted brake drums. Hub assembly for Tapered In Spindle with long bolts for aluminum wheels.
SPECIFICATIONS
VMRS
053-016-000
# of Wheel Bolts
10
Wheel Bolt Circle Diameter
11.25 IN
Oil Fill Level, FL.OZ
20.88 fl.oz
Wheel Type
Dual Steel
OEM Description
Fleetrite Fleetrite Trailer Hub Assembly; Spindle Type: Tapered N; Wheel Type: Dual Steel; Wheel Bolt Circle Diameter: 11.25 IN; Bolt: Short; # of Wheel Bolts: 10; Oil Fill Level, FL.OZ: 20.88 fl.oz
Bolt
Short
Spindle Type
Tapered N
Package Dimensions
14.25 x 14.25 x 9.5 in
Weight
47 lbs
CROSS REFERENCES
- CONMET 10005478
- CONMET 10005478
- CONMET 10012141
- CONMET 10012141
- CONMET 10012143
- CONMET 10012143
- CONMET 10026182
- CONMET 10026182
- CONMET 10026184
- CONMET 10026184
- CONMET 10082224
- CONMET 10082224
- CONMET 10082249
- CONMET 10082249
- CONMET 10082251
- CONMET 10082251
- CONMET 105775
- CONMET 105775
- CONMET 106396
- CONMET 106396
- GUNITE HT789RB
- GUNITE HT789RB
- GUNITE HT791K
- GUNITE HT791K
- GUNITE HT794K
- GUNITE HT794K
- GUNITE HT794K1
- GUNITE HT794K1
- GUNITE HT794K5
- GUNITE HT794K5
- GUNITE HT794RC
- GUNITE HT794RC
- KIC 001-01025
- KIC 001-01025
- KIC 001-01025T
- KIC 001-01025T
- MERITOR 04-16048-001PST
- MERITOR 04-16048-001PST
- MERITOR 04-16048-002PST
- MERITOR 04-16048-002PST
- MERITOR 14-15984-1078
- MERITOR 14-15984-1078
- MERITOR 14-15984-1085
- MERITOR 14-15984-1085
- MTR WHL 410052
- MTR WHL 410052
- WALTHER 10-00106-002
- WALTHER 10-00106-002
- WALTHER 10-00106-102
- WALTHER 10-00106-102
- WALTHER 10-00106M-002
- WALTHER 10-00106M-002
- WALTHER 10-00106M-102
- WALTHER 10-00106M-102
- WALTHER 10-00114-002
- WALTHER 10-00114-002
- WALTHER 10-00114-102
- WALTHER 10-00114-102
- WALTHER 10-00114M-002
- WALTHER 10-00114M-002
- WALTHER 10-00114M-102
- WALTHER 10-00114M-102
- WEBB 20231--3
- WEBB 20231--3
- WEBB 20231--3T
- WEBB 20231--3T
