ZTNK0175X

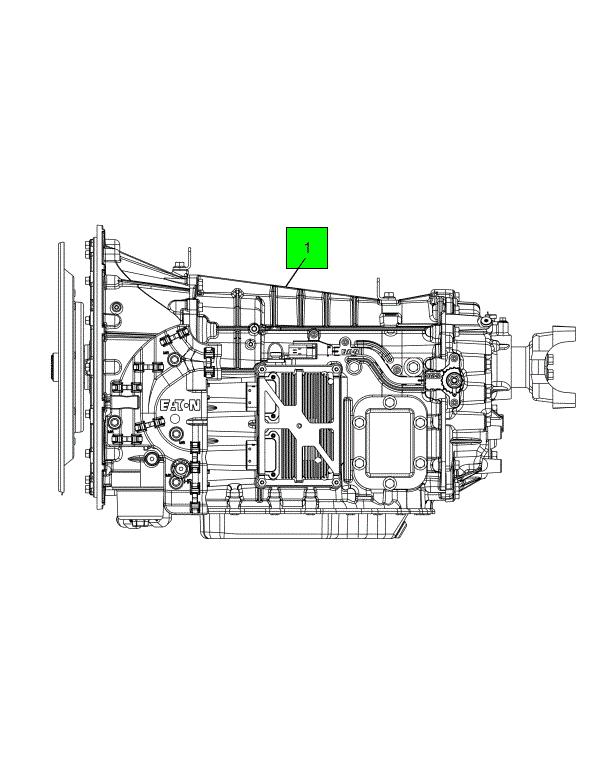

EATON PROCISION EDCO-6F107A TRANSMISSION FOR SERVICE WITH PARK PAWL
Navistar International®
DISCONTINUED
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
EATON PROCISION EDCO-6F107A TRANSMISSION FOR SERVICE WITH PARK PAWL
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BREATHER | 1 | FULX2014210 |
| LUBE BAR ASSEMBLY, WELDMENT FRONT | 1 | FULA8535 |
| LUBE BAR ASSEMBLY, REAR | 1 | FULA8536 |
| SPEED SENSOR PLUG KIT | 1 | FULK4267 |
| REAR COVER KIT- NON PARK PAWL | 1 | FULK4268 |
| DRAIN PLUG KIT | 1 | FULK4270 |
| SUMP PAN W/GASKET REPLACEMENT KIT | 1 | FULK4271 |
| COMPLETE FILTER KIT | 1 | FULK4272 |
| CARTRIDGE FILTER SERVICE KIT | 1 | FULK4273 |
| 74 WAY PASS THROUGH CONNECTOR KIT | 1 | FULK4276 |
| 3 RAIL POSITION SENSOR ASSEMBLY KIT | 1 | FULK4282 |
| SCREW, SET SHIFT YOKE | 1 | FULX81003M |
| SNAP RING KIT LOWER SHAFT | 1 | ECK4283 |
| SNAP RING KIT LOWER SHAFT | 1 | FULK4283 |
| OUTPUT YOKE /FLANGE RETAINER KIT | 1 | FULK4291 |
| BALL, STEEL 5MM | 1 | FULX140500M |
| SCREW, HEXAGON FLANGE HEAD M6X1.0X40 | 1 | FULX0633M |
| SCREW, HEXAGON FLANGE HEAD M10X1.5X90 | 1 | FULX1047M |
| SCREW, FLANGE HEXAGON HEAD M10X1.5X20 | 1 | FULX1048M |
| SCREW /WASHER ASSEMBLY M8X1.25X20 | 1 | FULXC0839M |
| POWER TAKE-OFF PROVISION COVER | 1 | FULGX8881616 |
| CLEVIS, ADJUSTABLE TRANSMISSION LINKAGE ROD | 1 | FUL20815 |
| SENSOR ASSEMBLY, TRANS RANGE | 1 | FUL4307605 |
| RETAINER, TAB, ACM | 1 | FUL4307877 |
| CONNECTOR, BULKHD | 1 | FUL4307615 |
| SHIELD, SLINGER | 1 | FUL4307669 |
| SEAL, OIL, SHAFT, OUTPUT | 1 | FUL4307882 |
| SHIFT SELECTOR, PUSHBUTTON | 1 | FUL4307942 |
| SPACER, BEARING, C/S REAR | 1 | FUL4307972 |
| PLUG, ZERO LEAK M22X1.5 | 1 | FUL4308229 |
| SEAL, TUBE, DIPSTICK | 1 | FUL4308775 |
| PIN, ROLL 6MMX35MM | 1 | FUL5558507 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
