2033557C94

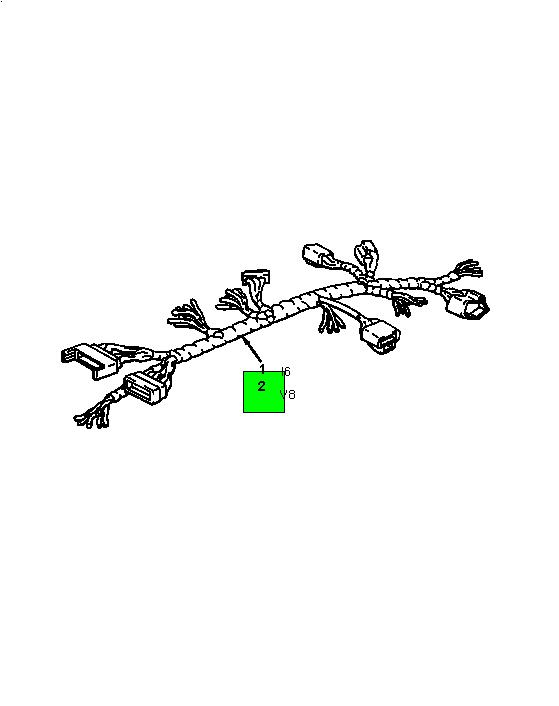

HARNESS, ELECTRICAL ENGINE
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$2,399.95
$2,879.94
FINAL SALE. No returns or exchanges.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
HARNESS, ELECTRICAL ENGINE
Weight
13.03 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| TERMINAL, BATTERY CABLE 4 GAUGE 7.5 MM DIAMETER | 2 | 571673C1 |
| PLUG, SEALANT | 23 | 1652325C1 |
| TERMINAL, CABLE, EYELET 3/8 STUD | 1 | 365680C2 |
| TERMINAL, BATTERY CABLE 4 GAUGE | 2 | 475961C1 |
| CONNECTOR, BODY 23 WAY | 1 | 1661194C91 |
| TERMINAL, CABLE MALE | 7 | 1661213C1 |
| TERMINAL, CABLE MALE | 1 | 1661627C1 |
| TERMINAL, CABLE MALE | 12 | 1661222C1 |
| TERMINAL, CABLE MALE | 4 | 1661220C1 |
| TERMINAL, CABLE MALE | 1 | 1661229C1 |
| TERMINAL, CABLE MALE | 2 | 1661212C1 |
| TERMINAL, CABLE MALE | 1 | 1661231C1 |
| LOCK, CONNECTOR BODY | 1 | 1661207C1 |
| CONNECTOR, BODY 22 WAY | 1 | 1661195C1 |
| TERMINAL, CABLE MALE | 2 | 1661233C1 |
| LOCK, CONNECTOR BODY | 1 | 1661206C1 |
| CONNECTOR, CABLE FEMALE | 1 | 1667740C1 |
| TERMINAL, CABLE SEALED MALE | 3 | 1667742C1 |
| SEAL, CABLE TERMINAL LOOSE | 3 | 1661872C1 |
| LOCK, CONNECTOR BODY | 1 | 1667771C1 |
| TERMINAL, BATTERY CABLE | 1 | 581156C1 |
| LOCK, SEALED CONNECTOR BODY 2 WAY | 2 | 1671608C1 |
| TERMINAL, CABLE 5/16" DIAMETER EYELET | 1 | 2015884C1 |
| CONNECTOR, BODY 3 WAY | 1 | 1678137C1 |
| TERMINAL, CABLE FEMALE 16,18,20 GAUGE | 3 | 1651943C1 |
| CONNECTOR, BODY 3 WAY MALE | 2 | 587570C91 |
| TERMINAL, CABLE FEMALE WEATHERPACK 14,16 GAUGE | 12 | 587575C1 |
| TERMINAL, CABLE CABLE FEMALE WEATHERPACK (GAUGE-18,20) | 2 | 587576C1 |
| TERMINAL, ELECTRICAL | 2 | 365682C2 |
| TERMINAL, CABLE | 1 | 338892C2 |
| TERMINAL, CABLE | 2 | 365685C2 |
| TERMINAL, ELECTRICAL | 2 | 365681C2 |
| CONNECTOR, BODY 1 WAY MALE | 3 | 587566C91 |
| CONNECTOR, BODY 1 WAY FEMALE | 3 | 587565C91 |
| TERMINAL, BATTERY CABLE 4 GAUGE 13.5 MM | 2 | 578894C1 |
| CONNECTOR, CABLE | 2 | 2036584C1 |
| TERMINAL, CABLE | 4 | 2036586C1 |
| CONNECTOR, 5 WAY BODY MALE | 1 | 1661375C2 |
| TERMINAL, CABLE 14 GAUGE | 4 | 2033816C1 |
| PLUG, SEALANT LOOSE PIECE | 4 | 589390C1 |
| TERMINAL, CABLE MALE WEATHERPACK 14,16 GAUGE | 6 | 587577C1 |
| LOCK, MALE CONNECTOR BODY 5 WAY | 1 | 1661376C1 |
| CONNECTOR, BODY 2 WAY FEMALE | 1 | 587567C91 |
| PLUG, SEALANT LOOSE PIECE | 4 | 589391C1 |
| CONNECTOR, BODY 2 WAY MALE | 1 | 587568C91 |
| CONNECTOR, BODY 6 WAY MALE | 1 | 587574C91 |
| TERMINAL, CABLE CABLE FEMALE WEATHERPACK (GAUGE-12) | 1 | 1673747C1 |
| CONNECTOR, BODY 6 WAY FEMALE | 1 | 587573C91 |
| TERMINAL, CABLE CABLE MALE WEATHERPACK (GAUGE-12) | 2 | 1673748C1 |
| CONNECTOR, BODY 2 WAY MALE | 2 | 1671610C1 |
| CONNECTOR, CABLE | 1 | 2013314C1 |
| TERMINAL, CABLE SEALED FEMALE | 2 | 1667737C1 |
| SEAL, CABLE TERMINAL | 2 | 1667739C1 |
| CONNECTOR, BODY 5 WAY FEMALE | 1 | 1677851C1 |
| TERMINAL, CABLE MALE 14 GAUGE | 4 | 2033912C1 |
| TERMINAL, CABLE 16 GAUGE | 6 | 2033819C1 |
| LOCK, FEMALE CONNECTOR BODY 5 WAY | 1 | 1677914C1 |
| HARNESS, ELECTRICAL HYDRAULIC BRAKES GROUND | 2 | 2002133C91 |
| CONNECTOR, BODY 5 WAY SEALED MALE | 1 | 1661747C91 |
| TERMINAL, CABLE FEMALE | 2 | 1661708C1 |
| TERMINAL, CABLE FEMALE | 2 | 1661707C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
