K100090

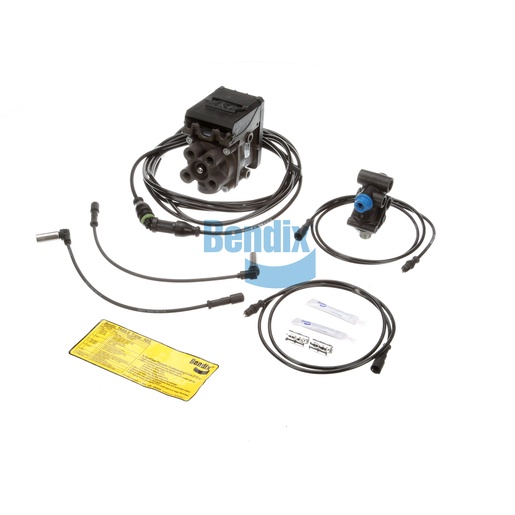

ABS Kit for Trailer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix ABS Kit for Trailers is a comprehensive solution designed to enhance the safety and performance of your trailer's braking system. This kit includes essential components that ensure optimal functionality of the anti-lock braking system, which prevents wheel lock-up during hard braking scenarios. Featuring a competitive replacement design, it supports a 2S/1M axle configuration and is crafted with high-quality materials to withstand the rigors of commercial use. The kit is lightweight at 3.5 kg (7.67 lb) and includes installation instructions for user-friendly setup. With a length of 31.5 mm and a width of 18.0 mm, it is compact yet effective. For those looking to upgrade their trailer's braking capabilities, this genuine Bendix part is an indispensable investment. Source One Parts Center is your premier destination for authentic Bendix components, ensuring you get the best for your vehicle's performance and safety.
SPECIFICATIONS
VMRS
013-011-147: Module - Antilock Brakes, Trailer
Wheel Speed Sensor Harness Length
12.5 IN
Height
18.0 mm (0.71 in)
Width
18.0 mm (0.71 in)
Additional Power Cable Length
234 IN
ABS Configuration
2S/1M Axle
Length
31.5 mm (1.24 in)
Wheel Speed Sensor Extension Length
60 IN
Harmonized System (HS) Code
854370
Wheel Speed Sensor Body Type
90°
Kit Type
Competitive Replacement
Country of Origin
Germany
ABS Lamp Included
No
Trailer Roll Stability Feature Included
No
Clips / Cable Ties Included
None
Additional Power Cable Connector Type
Packard 5-Pin
Spring Brake Valve Included
SRC-7000
Application
Trailer
Installation Instructions Included
Yes
Labels Included
Yes
Weight
7.67 lb
