$1,449.95
$1,739.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

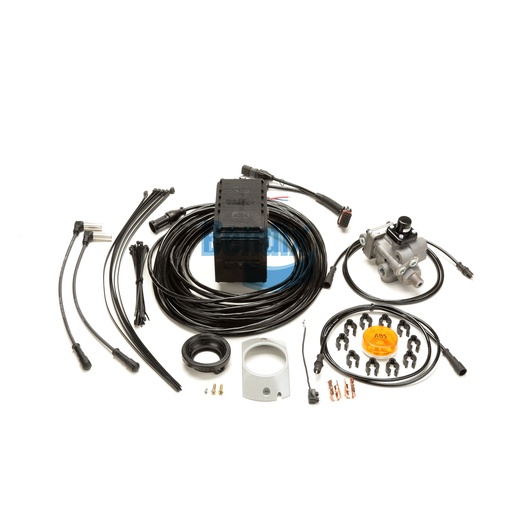

The ABS Kit for Trailer from Bendix is a comprehensive solution designed to enhance trailer braking performance through advanced antilock brake technology. This kit includes all necessary components for installation, including wheel speed sensors, a spring brake valve, and detailed installation instructions, ensuring that your trailer operates safely and efficiently. With the 2S/1M axle configuration and included roll stability features, this kit helps prevent wheel lock-up during braking, providing better control and stability on the road. The robust design and high-quality materials used in this kit ensure durability and reliability, making it an ideal choice for fleet operators looking to maintain optimal braking performance. Source One Parts Center is the leading supplier of genuine Bendix OEM parts, making it easy to keep your commercial vehicles in peak condition.
SPECIFICATIONS
VMRS
013-011-147: Module - Antilock Brakes, Trailer
Wheel Speed Sensor Harness Length
12.5 IN
Height
18.0 mm (0.71 in)
Width
18.0 mm (0.71 in)
ABS Configuration
2S/1M Axle
Length
31.5 mm (1.24 in)
Wheel Speed Sensor Extension Length
60 IN
Additional Power Cable Length
780 IN
Harmonized System (HS) Code
854370
Pigtail Cable Diagnostic Length
9 IN
Pigtail Power / Power Cable Length
9 IN
Wheel Speed Sensor Body Type
90°
Kit Type
BX New
Additional Power Cable Connector Type
Blunt Cut
Clips / Cable Ties Included
Clips and Cable Ties
Country of Origin
Germany
Spring Brake Valve Included
SR-5
Application
Trailer
ABS Lamp Included
Yes
Installation Instructions Included
Yes
Labels Included
Yes
Trailer Roll Stability Feature Included
Yes
Weight
15.6 lb
