$1,599.95
$1,919.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

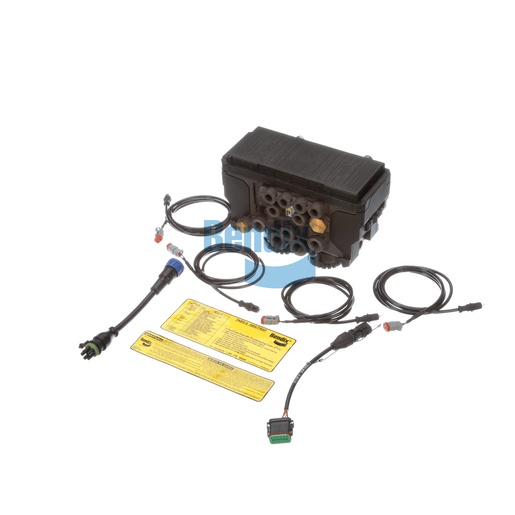

The Bendix ABS Kit for Trailers is an essential upgrade for enhancing the safety and performance of your trailer's braking system. This complete kit is designed for BX replacement with pre-dressed axles, including critical components for an Anti-lock Braking System (ABS) integrated with roll stability features. Manufactured in Germany, the kit is built to meet the high standards required for commercial applications, ensuring reliability and efficiency. With a net weight of 6.4 kg (14.01 lb), it includes installation instructions, making it user-friendly for maintenance teams. The kit's design helps prevent wheel lockup during braking, improving control and stability under various driving conditions. Investing in this ABS kit can extend the lifespan of your braking components and enhance overall vehicle safety. Source One Parts Center is the go-to destination for genuine Bendix parts, providing unwavering quality for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-011-147: Module - Antilock Brakes, Trailer
Width
188.0 mm (7.4 in)
Height
199.0 mm (7.83 in)
Length
278.0 mm (10.94 in)
ABS Configuration
4S/2M Axle
Wheel Speed Sensor Extension Length
60 IN
Harmonized System (HS) Code
854370
Pigtail Cable Diagnostic Length
9 IN
Pigtail Power / Power Cable Length
9 IN
Kit Type
BX Replacement / Pre-Dressed Axles (w/ WSS)
Country of Origin
Germany
ABS Lamp Included
No
Clips / Cable Ties Included
None
Application
Trailer
Installation Instructions Included
Yes
Labels Included
Yes
Trailer Roll Stability Feature Included
Yes
Weight
14.01 lb
