802001

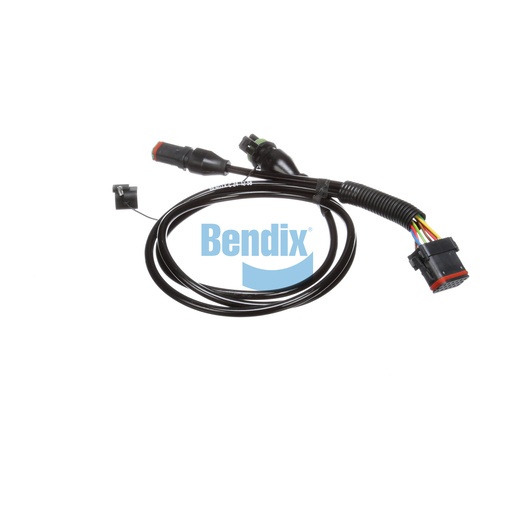

Wiring Harness
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Optimize your trailer’s braking system with the Bendix Wiring Harness, specifically designed for ABS and stability applications. This wiring harness ensures seamless communication between components, allowing for effective monitoring and control of the braking systems. Engineered to meet rigorous standards, it features weather-sealed connectors for enhanced durability and reliability in various environmental conditions. Weighing only 0.4 kg, this lightweight harness is easy to install and integrates smoothly into your trailer’s existing electrical framework. Whether you’re upgrading or replacing an old harness, this product guarantees a secure connection and optimal performance. Source One Parts Center is the premier source for authentic Bendix OEM parts, ensuring you receive top-quality components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-011-096: Wiring Harness, ECU - Antilock Brakes
Pigtail Length (C3)
1524.0 mm (60 IN)
Pigtail Length (C5)
228.6 mm (9 IN)
Harmonized System (HS) Code
854430
Connector (Main)
Deutsch DT Series 18-Way Sealed Connector (Female)
Connector 5
Deutsch DT Series 4-Way Sealed Connector (Female)
Application (C5)
Diagnostic (w/ Protection Cap)
Country of Origin
Mexico
Application (C3)
Power Cable
Application (Main)
Trailer ABS ECU
Harness Application
Trailer ABS Power Harness
Connector 3
Weather Pack 5-Way Sealed Connector (Female)
Weight
0.8 lb
