802002

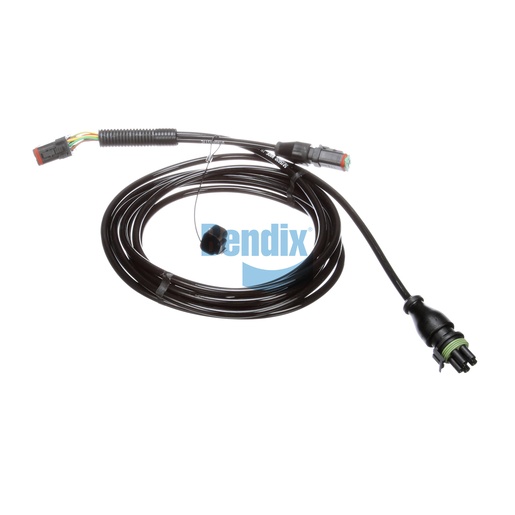

Wiring Harness
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Wiring Harness is a crucial element in the ABS and stability systems of trailers, ensuring seamless communication between various components for optimal performance. Designed with high-quality materials, this harness features Deutsch DT series connectors that provide secure and reliable connections, protecting against environmental factors and wear. With a length of 1524 mm, it offers ample reach for installation, ensuring that it fits a wide range of trailer configurations. This harness is built to withstand extreme temperatures, operating efficiently from -40°F to 320°F, making it perfect for heavy-duty applications. Its robust design ensures that the wiring remains intact and functional, contributing to the overall safety and reliability of your trailer's braking system. For high-quality Bendix OEM parts, Source One Parts Center is the best place to shop, providing trusted components for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-011-096: Wiring Harness, ECU - Antilock Brakes
Pigtail Length (C5)
228.6 mm (9 IN)
Pigtail Length (C3)
4572.0 mm (180 IN)
Harmonized System (HS) Code
854430
Connector (Main)
Deutsch DT Series 18-Way Sealed Connector (Female)
Connector 5
Deutsch DT Series 4-Way Sealed Connector (Female)
Application (C5)
Diagnostic (w/ Protection Cap)
Country of Origin
Mexico
Application (C3)
Power Cable
Application (Main)
Trailer ABS ECU
Harness Application
Trailer ABS Power Harness
Connector 3
Weather Pack 5-Way Sealed Connector (Female)
Weight
1.5 lb
