$129.95
$155.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

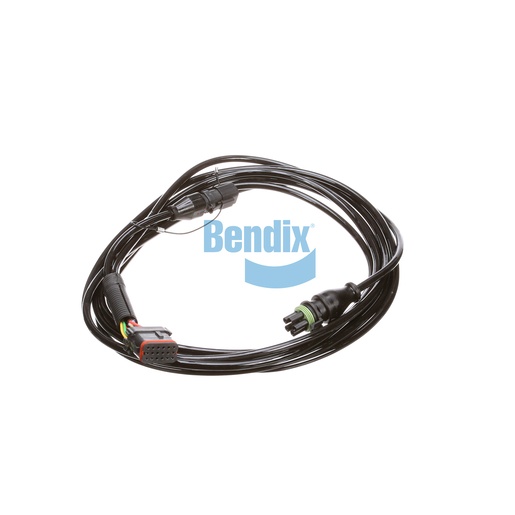

The Wiring Harness is a crucial component for the efficient operation of your trailer's ABS system, ensuring seamless communication between the various electronic systems. Manufactured in Mexico, this harness is designed to withstand the rigors of commercial use, providing reliability and durability. Weighing 1.2 kg, it features multiple sealed connectors to prevent moisture ingress, ensuring consistent performance even in harsh conditions. With a harness length that accommodates various trailer configurations, installation is straightforward, allowing for quick integration into your existing ABS setup. Utilizing this Wiring Harness ensures that your trailer's braking system operates optimally, enhancing safety on the road. For the best selection of genuine Bendix parts, Source One Parts Center is your go-to source, providing high-quality components for commercial vehicles.
SPECIFICATIONS
VMRS
013-011-096: Wiring Harness, ECU - Antilock Brakes
Pigtail Length (C5)
228.6 mm (9 IN)
Pigtail Length (C3)
5944.0 mm (234 IN)
Harmonized System (HS) Code
854430
Connector (Main)
Deutsch DT Series 18-Way Sealed Connector (Female)
Connector 5
Deutsch DT Series 4-Way Sealed Connector (Female)
Application (C5)
Diagnostic (w/ Protection Cap)
Country of Origin
Mexico
Application (C3)
Power Cable
Application (Main)
Trailer ABS ECU
Harness Application
Trailer ABS Power Harness
Connector 3
Weather Pack 5-Way Sealed Connector (Female)
Weight
2.6 lb
