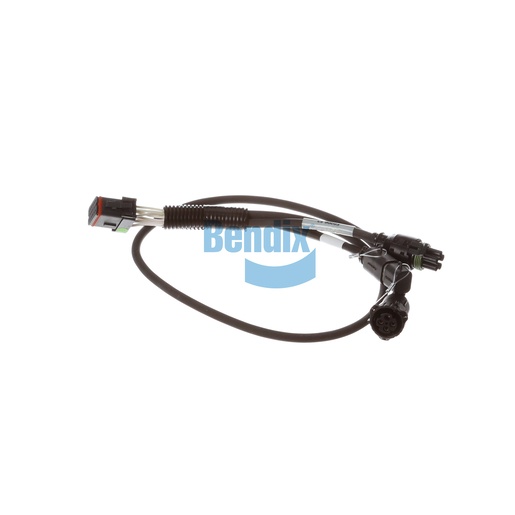

802004
Wiring Harness
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Wiring Harness from Bendix is designed to facilitate seamless communication within your trailer's ABS system. This harness features a robust construction that ensures reliability and durability, even in the most demanding environments. With multiple sealed connectors, it provides a secure fit that protects against moisture and dirt, ensuring consistent performance over time. Measuring an impressive length of 914 mm for flexibility in installation, this harness is vital for maintaining proper function in your braking system. Its high-quality design reflects Bendix's commitment to excellence, with attention to detail that guarantees compatibility and efficiency. For those looking for authentic Bendix OEM parts, Source One Parts Center is your best source, providing quality components that enhance the performance of your commercial vehicle.
SPECIFICATIONS
VMRS
013-011-096: Wiring Harness, ECU - Antilock Brakes
Pigtail Length (C3)
228.6 mm (9 IN)
Pigtail Length (C5)
228.6 mm (9 IN)
Harmonized System (HS) Code
854430
Pigtail Length (C4)
914.0 mm (36 IN)
Connector 4
Circular DIN 3-Way Connector - ISO 15170-1 Twist-Lock (Female)
Connector (Main)
Deutsch DT Series 18-Way Sealed Connector (Female)
Connector 5
Deutsch DT Series 4-Way Sealed Connector (Female)
Application (C5)
Diagnostic (w/ Protection Cap)
Application (C4)
MOD 2 (Modulator Cable)
Country of Origin
Mexico
Application (C3)
Power Cable
Application (Main)
Trailer ABS ECU
Harness Application
Trailer ABS Power Harness
Connector 3
Weather Pack 5-Way Sealed Connector (Female)
Weight
0.8 lb
