802005
Wiring Harness
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

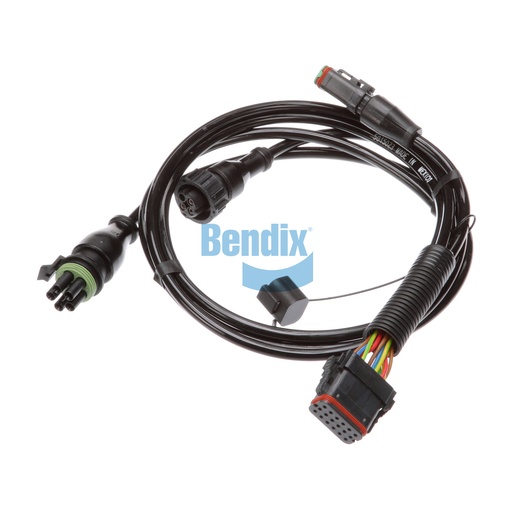

The Bendix Wiring Harness is an essential component for trailer ABS and stability systems, designed to ensure reliable connections between various electronic components. This harness features multiple sealed connectors that protect against moisture and dirt, enhancing the durability and longevity of your ABS system. With a clear focus on performance, this wiring harness is optimized for easy installation, which significantly reduces downtime during maintenance. The harness supports critical functions in your trailer's braking system, ensuring that your anti-lock braking technology operates seamlessly. When it comes to sourcing genuine Bendix parts, Source One Parts Center stands out as the ideal supplier for commercial vehicle components, offering high-quality solutions that keep your fleet running smoothly.
SPECIFICATIONS
VMRS
013-011-096: Wiring Harness, ECU - Antilock Brakes
Pigtail Length (C3)
1524.0 mm (60 IN)
Pigtail Length (C5)
228.6 mm (9 IN)
Harmonized System (HS) Code
854430
Pigtail Length (C4)
914.0 mm (36 IN)
Connector 4
Circular DIN 3-Way Connector - ISO 15170-1 Twist-Lock (Female)
Connector (Main)
Deutsch DT Series 18-Way Sealed Connector (Female)
Connector 5
Deutsch DT Series 4-Way Sealed Connector (Female)
Application (C5)
Diagnostic (w/ Protection Cap)
Application (C4)
MOD 2 (Modulator Cable)
Country of Origin
Mexico
Application (C3)
Power Cable
Application (Main)
Trailer ABS ECU
Harness Application
Trailer ABS Power Harness
Connector 3
Weather Pack 5-Way Sealed Connector (Female)
Weight
1.08 lb
