802006
Wiring Harness
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

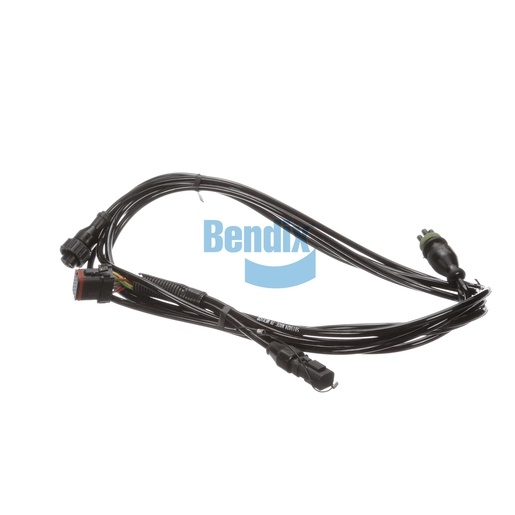

The Wiring Harness from Bendix is designed for seamless integration within ABS and stability systems on trailers. This harness features multiple connectors, including Weather Pack and Deutsch sealed connectors, ensuring reliable electrical connections in various environments. With a length of 5944 mm, it offers flexibility for different trailer configurations. This wiring harness is crucial for the effective functioning of the ABS system, contributing to overall vehicle safety. For genuine Bendix OEM parts, including this Wiring Harness, trust Source One Parts Center for quality and support.
SPECIFICATIONS
VMRS
013-011-096: Wiring Harness, ECU - Antilock Brakes
Pigtail Length (C5)
228.6 mm (9 IN)
Pigtail Length (C3)
4572.0 mm (180 IN)
Harmonized System (HS) Code
854430
Pigtail Length (C4)
914.0 mm (36 IN)
Connector 4
Circular DIN 3-Way Connector - ISO 15170-1 Twist-Lock (Female)
Connector (Main)
Deutsch DT Series 18-Way Sealed Connector (Female)
Connector 5
Deutsch DT Series 4-Way Sealed Connector (Female)
Application (C5)
Diagnostic (w/ Protection Cap)
Application (C4)
MOD 2 (Modulator Cable)
Country of Origin
Mexico
Application (C3)
Power Cable
Application (Main)
Trailer ABS ECU
Harness Application
Trailer ABS Power Harness
Connector 3
Weather Pack 5-Way Sealed Connector (Female)
Weight
1.72 lb
