802007

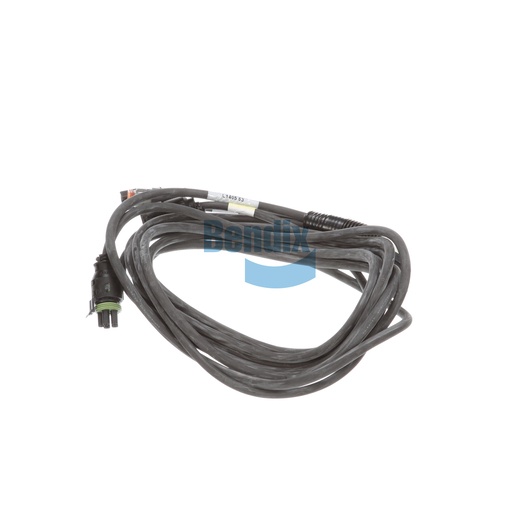

Wiring Harness
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Wiring Harness is a critical component for the effective operation of ABS and stability systems in trailers. Designed for reliability, this harness ensures a secure and efficient electrical connection, facilitating the optimal performance of anti-lock brake systems. Weighing just 1.0 kg, it is engineered for easy installation without compromising on durability. This wiring harness is compatible with various Bendix systems, making it an essential part of any fleet maintenance program. For genuine Bendix components like this wiring harness, Source One Parts Center stands out as your trusted source for OEM parts.
SPECIFICATIONS
VMRS
013-011-096: Wiring Harness, ECU - Antilock Brakes
Pigtail Length (C5)
228.6 mm (9 IN)
Pigtail Length (C3)
5944.0 mm (234 IN)
Harmonized System (HS) Code
854430
Pigtail Length (C4)
914.0 mm (36 IN)
Connector 4
Circular DIN 3-Way Connector - ISO 15170-1 Twist-Lock (Female)
Connector (Main)
Deutsch DT Series 18-Way Sealed Connector (Female)
Connector 5
Deutsch DT Series 4-Way Sealed Connector (Female)
Application (C5)
Diagnostic (w/ Protection Cap)
Country of Origin
Germany
Application (C4)
MOD 2 (Modulator Cable)
Application (C3)
Power Cable
Application (Main)
Trailer ABS ECU
Harness Application
Trailer ABS Power Harness
Connector 3
Weather Pack 5-Way Sealed Connector (Female)
Weight
2.25 lb
