$129.95
$155.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

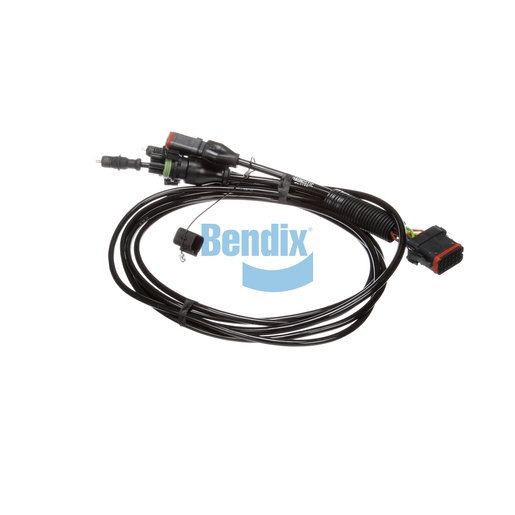

The Bendix Wiring Harness is a crucial component of your vehicle's ABS and stability systems, ensuring seamless electrical connections for optimal function. Designed specifically for trailers, this harness supports various applications, including speed sensors and diagnostic connections. With multiple sealed connectors, it offers robust protection against environmental factors, enhancing reliability in harsh conditions. The harness's lightweight design and easy installation make it a practical choice for fleet maintenance and repairs. Investing in high-quality wiring harnesses is essential for the overall safety and performance of your braking system. For all your Bendix OEM parts, Source One Parts Center is your go-to source for quality and reliability, ensuring your commercial vehicles operate at their best.
SPECIFICATIONS
VMRS
013-011-096: Wiring Harness, ECU - Antilock Brakes
Pigtail Length (C1)
1524.0 mm (60 IN)
Pigtail Length (C2)
1524.0 mm (60 IN)
Pigtail Length (C3)
228.6 mm (9 IN)
Pigtail Length (C5)
228.6 mm (9 IN)
Harmonized System (HS) Code
854430
Pigtail Length (C4)
914.0 mm (36 IN)
Connector 4
Circular DIN 3-Way Connector - ISO 15170-1 Twist-Lock (Female)
Connector (Main)
Deutsch DT Series 18-Way Sealed Connector (Female)
Connector 5
Deutsch DT Series 4-Way Sealed Connector (Female)
Application (C5)
Diagnostic (w/ Protection Cap)
Application (C4)
MOD 2 (Modulator Cable)
Country of Origin
Mexico
Application (C3)
Power Cable
Application (C1)
Speed Sensor SAL (Road)
Application (C2)
Speed Sensor SAR (Curb)
Connector 1
Standard 2-Pin DIN Barrel Sealed Connector (Plug)
Connector 2
Standard 2-Pin DIN Barrel Sealed Connector (Plug)
Application (Main)
Trailer ABS ECU
Harness Application
Trailer ABS Power Harness
Connector 3
Weather Pack 5-Way Sealed Connector (Female)
Weight
0.75 lb
