$159.95
$191.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

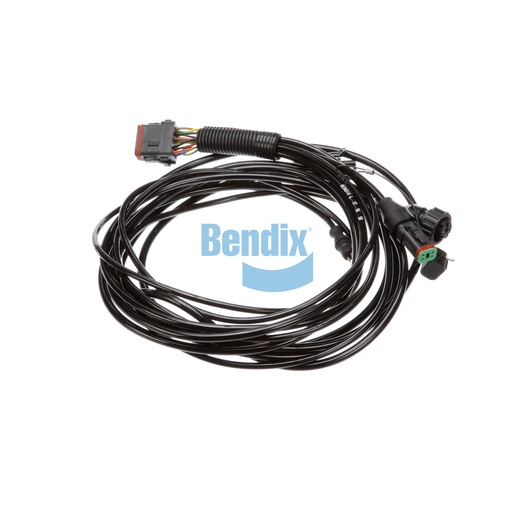

The Wiring Harness is a critical element in the Bendix ABS and Stability system for trailers, designed to connect various electrical components seamlessly. This harness features multiple sealed connectors, including a Deutsch DT series 18-way connector, which ensures reliable communication and power supply to your ABS ECU. With a net weight of 1.0 kg, this harness is built to withstand the rigors of commercial vehicle operation, providing a secure, long-lasting connection under challenging conditions. The harness application includes essential functions such as speed sensor connections and diagnostic capabilities, making it vital for maintaining the performance of your braking system. By choosing this wiring harness, you're investing in enhanced safety and reliability for your vehicle. For the best in genuine Bendix parts, look no further than Source One Parts Center, your trusted source for quality and reliability.
SPECIFICATIONS
VMRS
013-011-096: Wiring Harness, ECU - Antilock Brakes
Pigtail Length (C5)
228.6 mm (9 IN)
Pigtail Length (C3)
4572.0 mm (180 IN)
Harmonized System (HS) Code
854430
Pigtail Length (C1)
914.0 mm (36 IN)
Pigtail Length (C2)
914.0 mm (36 IN)
Pigtail Length (C4)
914.0 mm (36 IN)
Connector 4
Circular DIN 3-Way Connector - ISO 15170-1 Twist-Lock (Female)
Connector (Main)
Deutsch DT Series 18-Way Sealed Connector (Female)
Connector 5
Deutsch DT Series 4-Way Sealed Connector (Female)
Application (C5)
Diagnostic (w/ Protection Cap)
Application (C4)
MOD 2 (Modulator Cable)
Country of Origin
Mexico
Application (C3)
Power Cable
Application (C1)
Speed Sensor SAL (Road)
Application (C2)
Speed Sensor SAR (Curb)
Connector 1
Standard 2-Pin DIN Barrel Sealed Connector (Plug)
Connector 2
Standard 2-Pin DIN Barrel Sealed Connector (Plug)
Application (Main)
Trailer ABS ECU
Harness Application
Trailer ABS Power Harness
Connector 3
Weather Pack 5-Way Sealed Connector (Female)
Weight
2.14 lb
