$179.95
$215.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

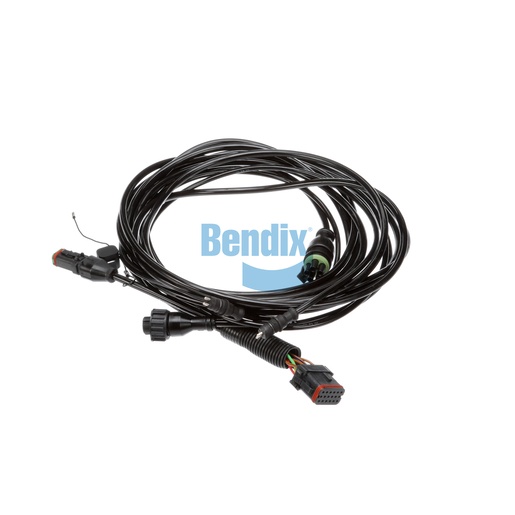

The Wiring Harness from Bendix is an essential component for ensuring efficient communication within your trailer's ABS system. Designed for durability and reliability, it features multiple sealed connectors that protect against moisture and dirt. Measuring a length of 1524 mm, this harness is versatile for various installation needs. Its high-quality design guarantees compatibility and efficiency, making it vital for maintaining the optimal performance of your braking system. Built in Mexico, this wiring harness upholds Bendix's exceptional standards for product quality and performance. When seeking genuine Bendix OEM parts, Source One Parts Center is your ideal source for high-quality components to maintain your commercial vehicle.
SPECIFICATIONS
VMRS
013-011-096: Wiring Harness, ECU - Antilock Brakes
Pigtail Length (C1)
1524.0 mm (60 IN)
Pigtail Length (C2)
1524.0 mm (60 IN)
Pigtail Length (C5)
228.6 mm (9 IN)
Pigtail Length (C3)
5944.0 mm (234 IN)
Harmonized System (HS) Code
854430
Pigtail Length (C4)
914.0 mm (36 IN)
Connector 4
Circular DIN 3-Way Connector - ISO 15170-1 Twist-Lock (Female)
Connector (Main)
Deutsch DT Series 18-Way Sealed Connector (Female)
Connector 5
Deutsch DT Series 4-Way Sealed Connector (Female)
Application (C5)
Diagnostic (w/ Protection Cap)
Application (C4)
MOD 2 (Modulator Cable)
Country of Origin
Mexico
Application (C3)
Power Cable
Application (C1)
Speed Sensor SAL (Road)
Application (C2)
Speed Sensor SAR (Curb)
Connector 1
Standard 2-Pin DIN Barrel Sealed Connector (Plug)
Connector 2
Standard 2-Pin DIN Barrel Sealed Connector (Plug)
Application (Main)
Trailer ABS ECU
Harness Application
Trailer ABS Power Harness
Connector 3
Weather Pack 5-Way Sealed Connector (Female)
Weight
2.65 lb
