802012

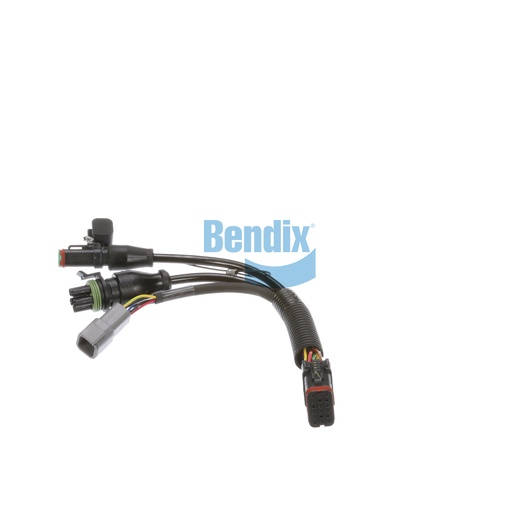

Wiring Harness
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Wiring Harness is a vital component of the ABS and stability systems designed for trailers. This high-quality harness facilitates seamless communication between various electronic components, ensuring that critical data is transmitted efficiently to optimize braking performance and safety. With a net weight of just 0.4 pounds, it is lightweight and easy to install, yet built to withstand the demanding conditions of commercial use. The wiring harness features a robust construction that provides protection against wear and tear, ensuring longevity even in harsh environments. Its advanced design includes sealed connectors that enhance durability and reduce the risk of electrical failures. By choosing the Bendix Wiring Harness, you ensure reliable performance for your trailer's braking system. For genuine Bendix OEM parts, Source One Parts Center is the best choice, offering reliability and quality for all your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-011-096: Wiring Harness, ECU - Antilock Brakes
Pigtail Length (C3)
228.6 mm (9 IN)
Pigtail Length (C5)
228.6 mm (9 IN)
Pigtail Length (C6)
228.6 mm (9 IN)
Harmonized System (HS) Code
854430
Application (C6)
Auxiliary Cable
Connector (Main)
Deutsch DT Series 18-Way Sealed Connector (Female)
Connector 5
Deutsch DT Series 4-Way Sealed Connector (Female)
Connector 6
Deutsch DTM Series 6-Way Sealed Connector (Male)
Application (C5)
Diagnostic (w/ Protection Cap)
Country of Origin
Mexico
Application (C3)
Power Cable
Application (Main)
Trailer ABS ECU
Harness Application
Trailer ABS Power Harness
Connector 3
Weather Pack 5-Way Sealed Connector (Female)
Weight
0.4 lb
