$144.95
$173.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

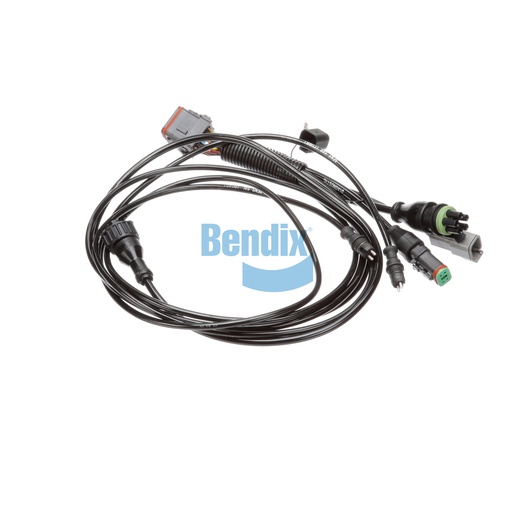

The Wiring Harness from Bendix is a vital component in the ABS and stability systems for trailers, designed to ensure robust electrical connections between various system parts. This harness is equipped with multiple sealed connectors, including Deutsch and DIN types, providing reliable connections that resist corrosion and wear. With its lightweight design at just 0.5 kg, it allows for easy installation, while the carefully planned pigtail lengths ensure compatibility with a variety of trailer configurations. This harness is essential for maintaining efficient communication between the ABS ECU and other components, helping to optimize braking performance and safety. Choose Source One Parts Center for all your genuine Bendix OEM parts, as they are the best source for top-quality components.
SPECIFICATIONS
VMRS
013-011-096: Wiring Harness, ECU - Antilock Brakes
Pigtail Length (C4)
1219.0 mm (48 IN)
Pigtail Length (C1)
1524.0 mm (60 IN)
Pigtail Length (C2)
1524.0 mm (60 IN)
Pigtail Length (C3)
228.6 mm (9 IN)
Pigtail Length (C5)
228.6 mm (9 IN)
Pigtail Length (C6)
228.6 mm (9 IN)
Harmonized System (HS) Code
854430
Application (C6)
Auxiliary Cable
Connector 4
Circular DIN 3-Way Connector - ISO 15170-1 Twist-Lock (Female)
Connector (Main)
Deutsch DT Series 18-Way Sealed Connector (Female)
Connector 5
Deutsch DT Series 4-Way Sealed Connector (Female)
Connector 6
Deutsch DTM Series 6-Way Sealed Connector (Male)
Application (C5)
Diagnostic (w/ Protection Cap)
Application (C4)
MOD 2 (Modulator Cable)
Country of Origin
Mexico
Application (C3)
Power Cable
Application (C1)
Speed Sensor SAL (Road)
Application (C2)
Speed Sensor SAR (Curb)
Connector 1
Standard 2-Pin DIN Barrel Sealed Connector (Plug)
Connector 2
Standard 2-Pin DIN Barrel Sealed Connector (Plug)
Application (Main)
Trailer ABS ECU
Harness Application
Trailer ABS Power Harness
Connector 3
Weather Pack 5-Way Sealed Connector (Female)
Weight
1.15 lb
